Contents Heater Matrix - Alexander Contents
Application Htr No. Height Width  Depth Pipe dia Image
ALX 200 20472 363 192 53 22mm
ALX 300 20592 380 190 54 15mm to 22mm
ALX 400 20907 426 185 43 15mm alexander dennis alx 400 heater matrix demister

ALX 400

1997-2006

click on picture for more info



20908 360 180 62 22mm

ALX 400 Lower Saloon

1997-2006

click on picture for more info

20910 363 180 62 22mm

ALX 400 Upper Saloon

1997-2006

click on picture for more info

20909 484 180 62 22mm

Enviro200 Dart

click on picture for more info

20651 363 180 62 22mm Alexander dennis enviro200 dart heater matrix demister
Enviro E400 2005 onwards 20911 348 180 62 22mm Alexander dennis E400 heater matrix

Enviro 400

click on picture for more info

20651 363 180 62 22mm alexander dennis enviro400 heater matrix

Enviro 400

click on picture for more info

20652 363 180 62 22mm alexander dennis enviro400 enviro500 heater matrix demister

Enviro E400

click on picture for more info

measurements are across the frame

21064 460 210 55 22mm Heater Matrix - Alexander Dennis - Enviro E400 - 21064

Enviro 500

click on picture for more info

20652 363 180 62 22mm alexander dennis enviro400 enviro500 heater matrix demister
Heater demister 20393 363 180 62 22mm
Heater demister 20422 363 180 62 22mm
Heater demister (H Duty) 20361 457 194 64 3/4"
Heater Demister 20443 457 194 64 3/4"

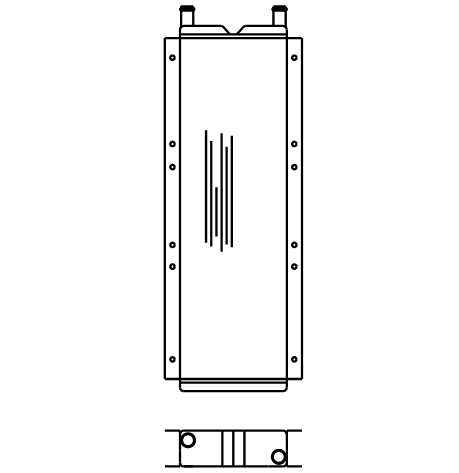

Heater Demister 20474 660 194 64 22mm walter alexander heater demister

PS (single decker)

click on picture for more information

20914 365 185 43 15mm
