Contents Heater Matrix - Austin Rover Contents
Application Htr No. Height Width  Depth Pipe dia Image

25 (All years all models)

Click on picture for more info

20424 243 127 61 5/8"
45 20794 245 123 60 5/8"

75 (all years & all models)

click on picture for more info

20812 180 220 30 flange

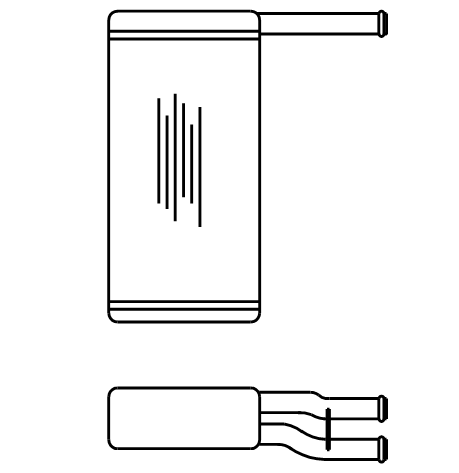

200 Series 1984-89 20311 245 124 52 5/8"
200 Series 1989-95 20424 243 127 61 5/8"
400 Series 1989-95 20424 243 127 61 5/8"

400 Series 1995-

Click on picture for more information

20794 245 123 60 5/8"

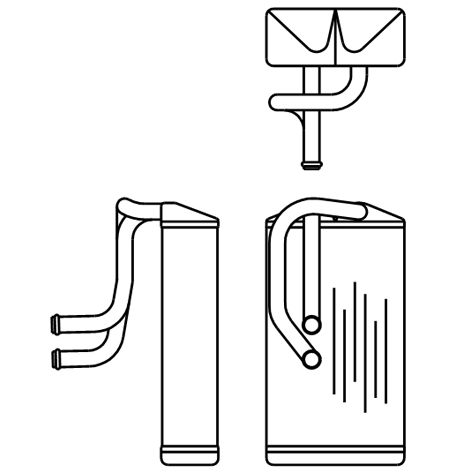

600 Series 20614 266 140 58 5/8"

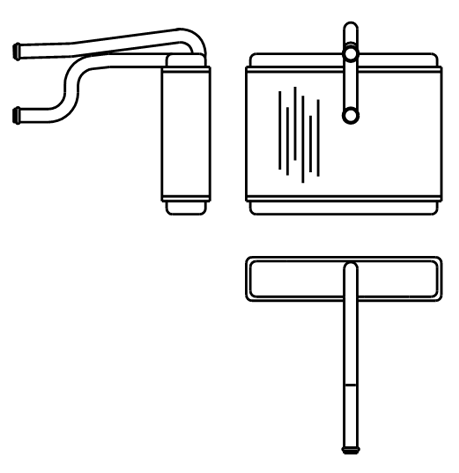

800 Series 1985-92 20325 195 237 53 5/8"
Allegro 1974- 20148 272 105 57 5/8"
Healey Sprite 20163 239 80 102 1/2"
Ital 1980-84 20148 272 105 57 5/8"
Landrover Freelander 20698 279 127 61 5/8"

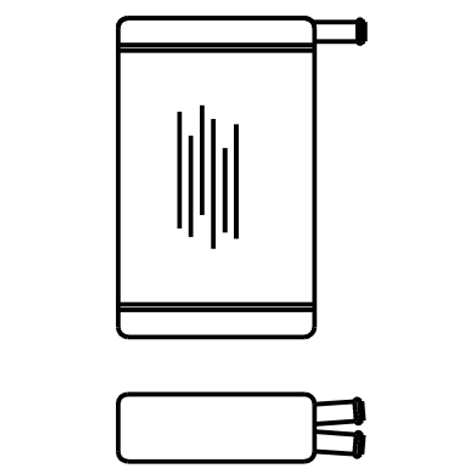

Maestro 1983-86 20195 260 157 48 5/8"

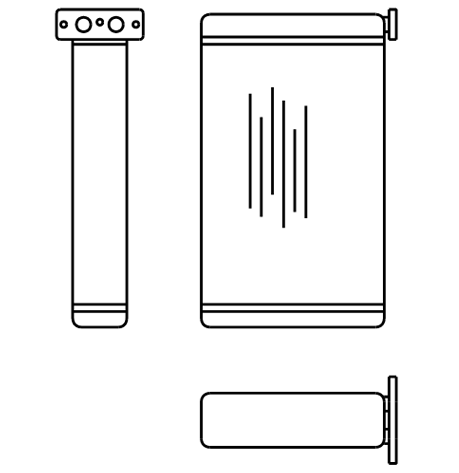

Maestro 1983-86 20280 260 154 45 flange
Maestro 1986-95 20258 273 154 45 flange
Marina 1974- 20148 272 105 57 5/8"
Marina 1974- 20299 276 132 57 5/8"

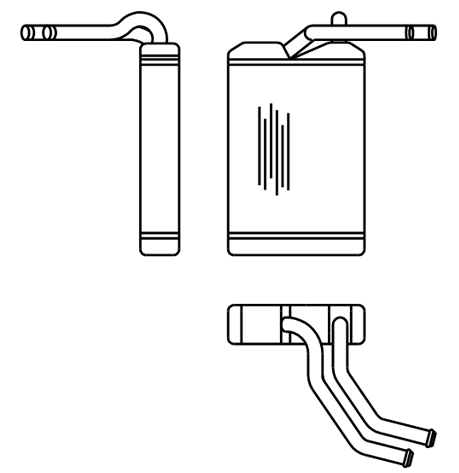

Metro 100 1990-94 20419 239 154 44 5/8"
Metro 1980-84 20238 227 157 48 flange
Metro 1984-90 20257 220 157 48 flange
Metro 1984-90 20461 220 151 48 flange
Mini 1963-69 20810 200 140 60 1/2"
Mini -1970 20147 194 140 58 1/2"
Mini 1970-84 20128 194 140 58 1/2"
Mini 1984-92 20477 192 150 46 5/8"
Mini 1992- 20781 195 140 48 5/8"
Mini Van 20165 168 152 57 1/2"
Montego 1983-86 20280 260 154 45 flange

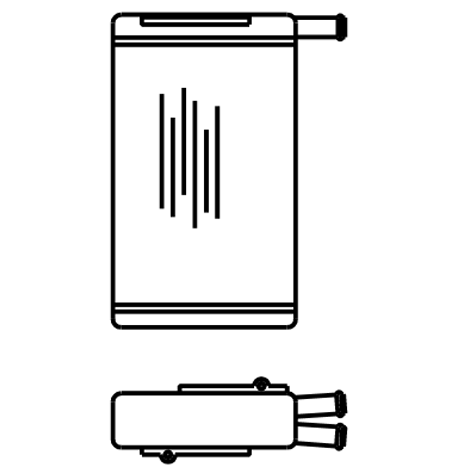

Montego 1986- 20193 273 154 45 5/8"
Montego 1986-95 20258 273 154 45 flange
P4 20659 250 95 100 1/2" rover p4 triumph 2000  heater matrix

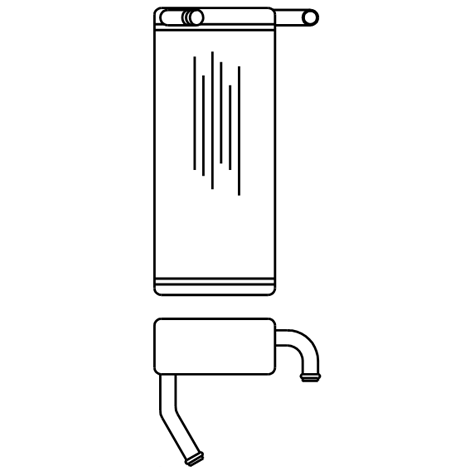

P6 20725 300 126 58 5/8"

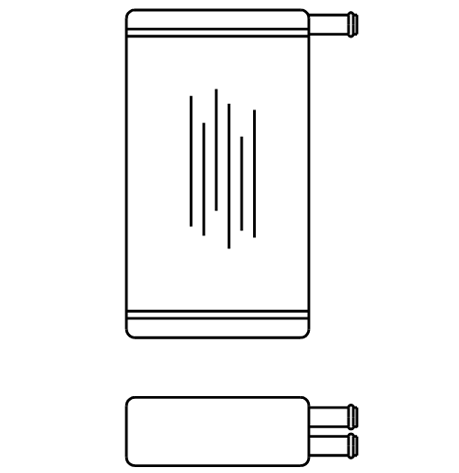

Princess 1975-81 20160 273 152 57 5/8"

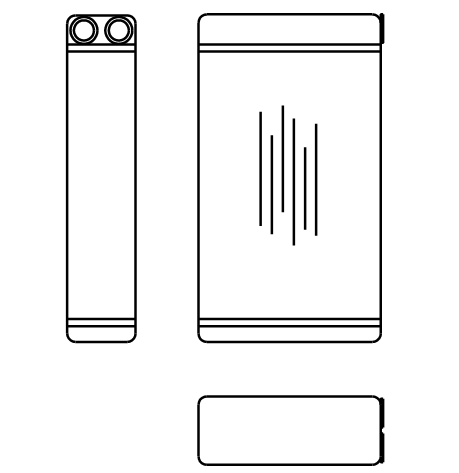

Princess 1975-81 20266 273 152 57 no pipes

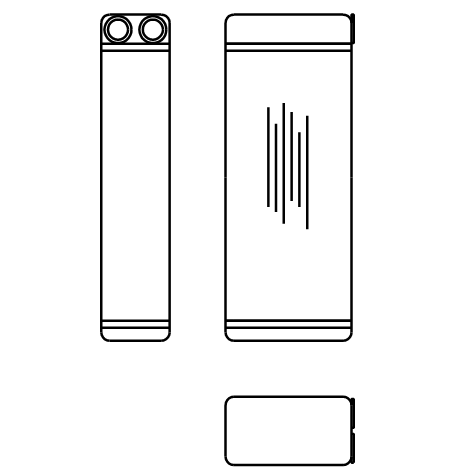

Princess 197U4-85 20194 272 105 57 no pipes
SD1 1974-85 20194 272 105 57 no pipes

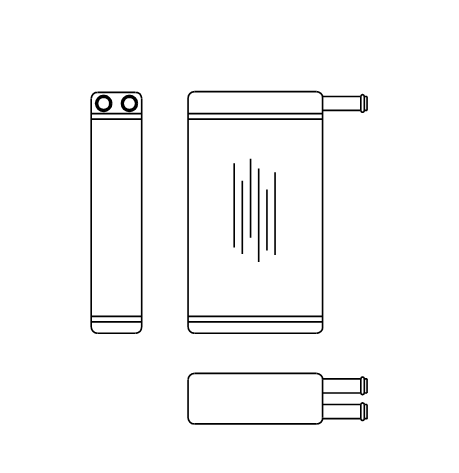

SD1 1975-86 20928 272 152 57 5/8"
SD1 1975-86 20266 273 152 57 no pipes
