Contents Heater Matrix - DAF Contents
Application Htr No. Height Width  Depth Pipe dia Image

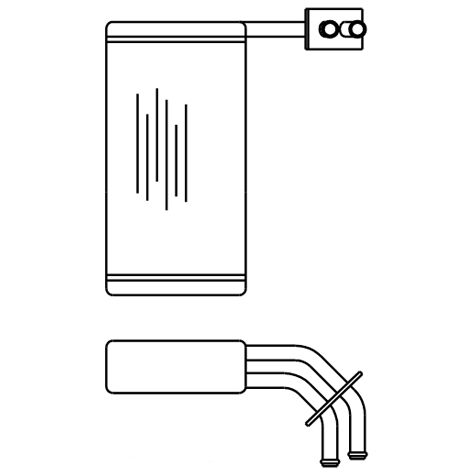

200 1989- 20187 298 152 64 5/8"
200 1989- (heavy duty) 20283 298 152 64 5/8"
400 1989- 20187 298 152 64 5/8"
400 1989- (heavy duty) 20283 298 152 64 5/8"
400 1992- (peugeot engine) 20465 305 157 48 5/8"

400 ldv convoy 1997-

click on picture for more info

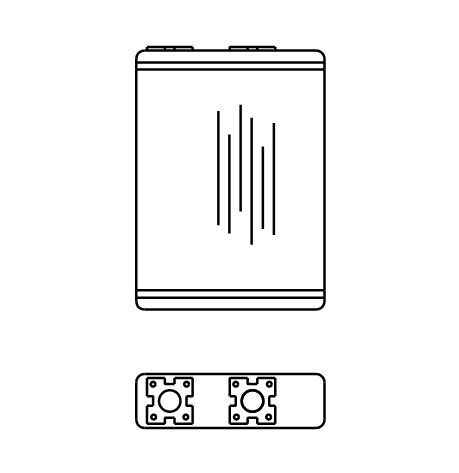

20518 213 157 45 flange

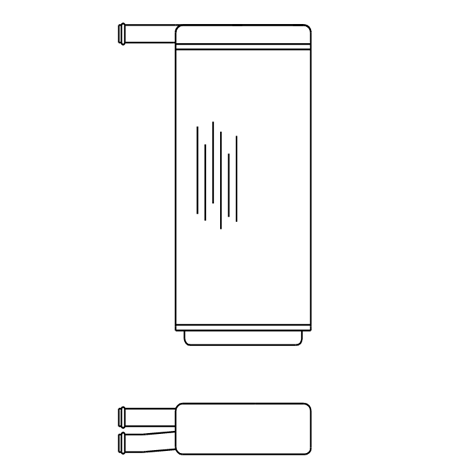

45 1991- 20663 348 152 48 18mm

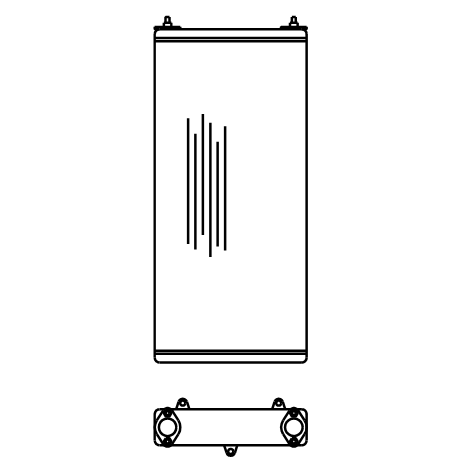

75 85 20553 417 190 45 flange
DB250 Bus Coach 20907 426 185 43 15mm DAF DB250 heater matrix demister

DB250 Bus/Coach

Click on drawing for more info

20908 360 180 62 22mm DAF DB250 heater matrix

DB250 Bus/Coach

Click on drawing for more info

20909 484 180 62 22mm DAF DB250 heater matrix

DB250 Bus/Coach

Click on drawing for more info

20910 363 180 62 22mm DAF DB250 Heater Matrix

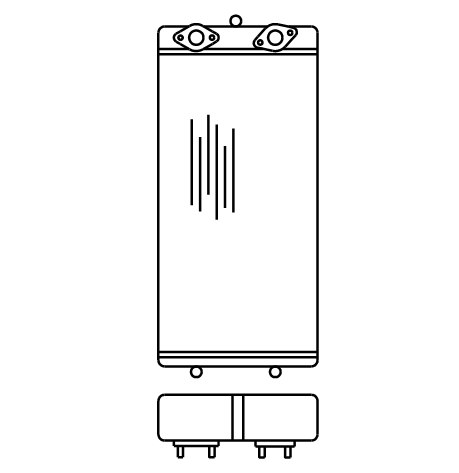

Camions 1600 1800 2000 20407 378 178 49 flange

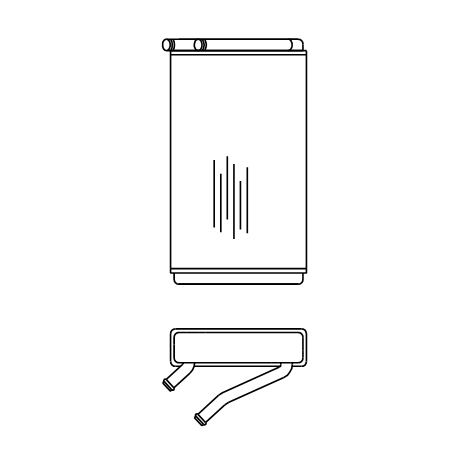

Military Vehicle (4 ton) 20667 346 192 53 5/8"

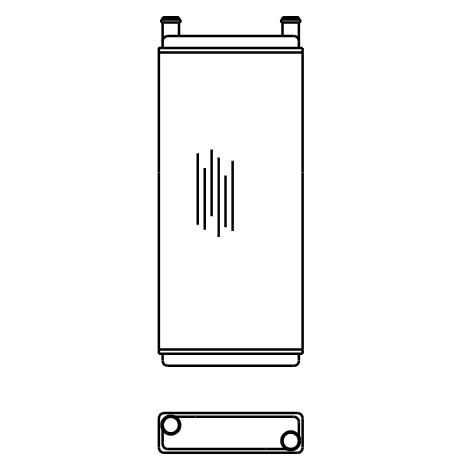

Paladin 20535 440 192 53 22mm
SB220 (Alexander Dennis) 20592 380 190 54 15mm to 22mm
