Contents Heater Matrix - Dennis Contents
Application Htr No. Height Width  Depth Pipe dia Image

Alexander E400 2005-

click on picture for more info

20911 348 180 62 22mm dennis alexander E400 enviro
ALX400 20907 426 185 43 15mm alexander dennis alx400 heater matrix demister

ALX400 Lower saloon 1997-2006 (Dennis Trident)

click on picture for more info

20910 363 180 62 22mm Dennis Trident Alx400 Heater Matrix

ALX400 Upper Saloon 1997-2006 (Dennis Trident)

click on picture for more info

20909 484 180 62 22mm Dennis ALX400 upper saloon heater matrix

ALX400 Demister Heater 1997-2006 (Dennis Trident)

click on picture for more info

20908 360 180 62 22mm dennis alx400 heater matrix demister

Enviro 400 / 200 Dart

click on picture for more info

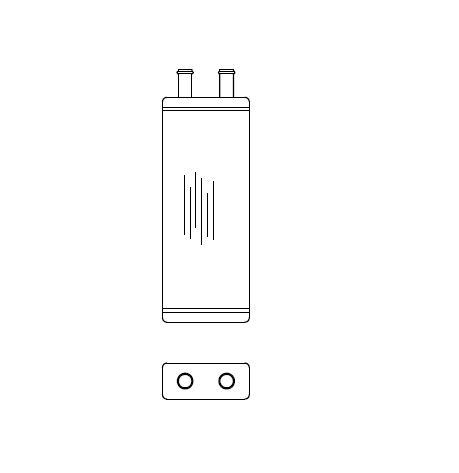

20651 363 180 62 22mm Dennis Enviro Dart heater matrix demister

Enviro 400 / 500

click on picture for more info

20652 363 180 62 22mm





Dart SLF EP4423 20499 430 154 40 15mm dennis dart slf heater matrix demister EP4423

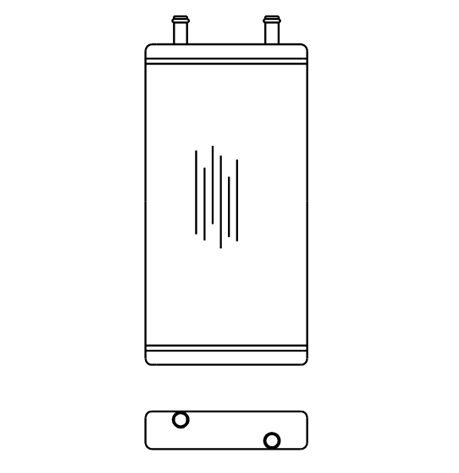

Dart 20491 365 185 43 15mm

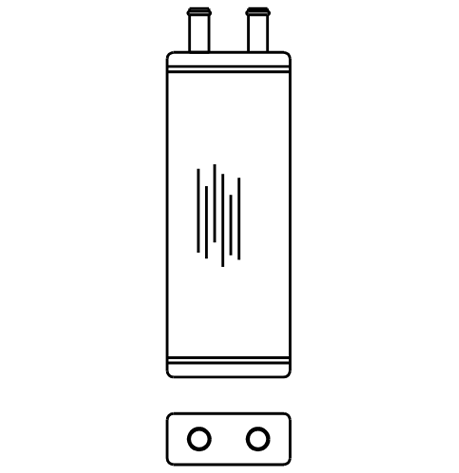

Dart 20329 370 140 58 22mm
Dart 20463 447 185 43 15mm

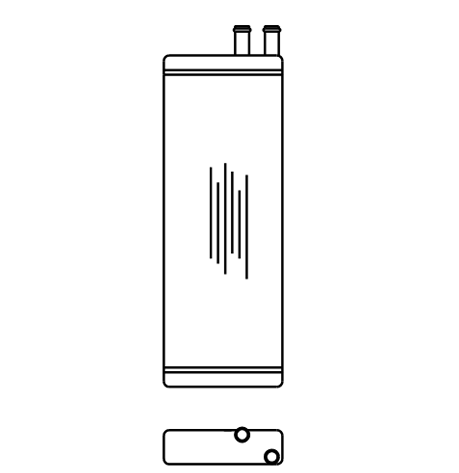

Dart (Plaxton) 20687 432 185 43 15mm

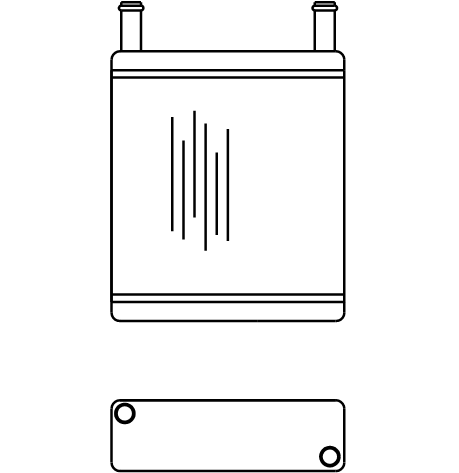

Demister 20702 224 194 59 5/8"

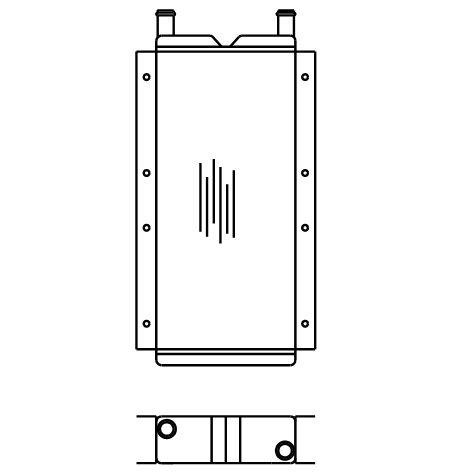

Dominator 20415 457 194 64 22mm
Eagle 20589 234 190 54 15mm/22mm

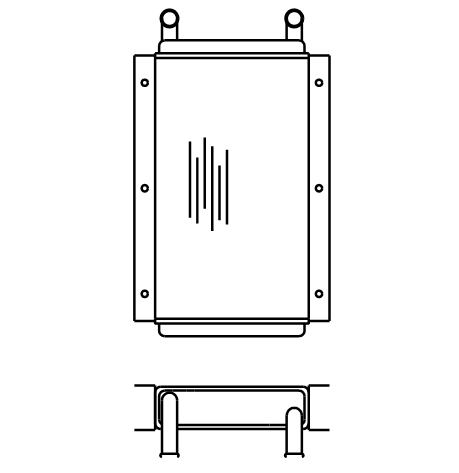

Fire Tender 20223 370 154 59 3/4"
Fire Tender 20503 310 140 48 15mm
Javelin 20564 459 155 44 22mm

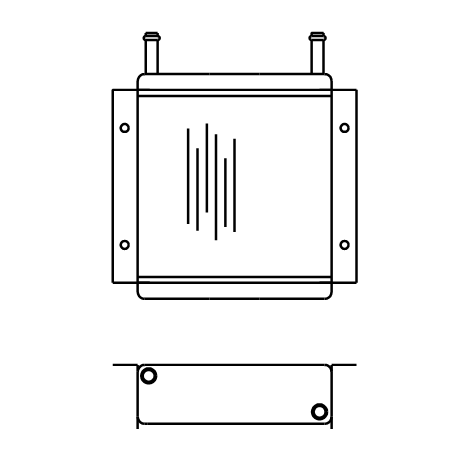

Municipal 20155 225 194 59 1/2"
Municipal 20413 225 194 64 1"
