Contents Heater Matrix - Ford Commercial Contents
Application Htr No. Height Width  Depth Pipe dia Image

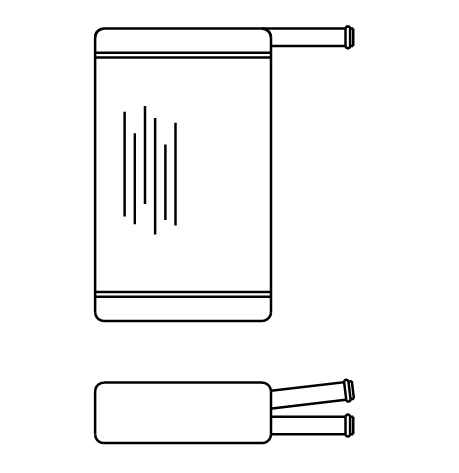

A series 20183 257 114 51 5/8"

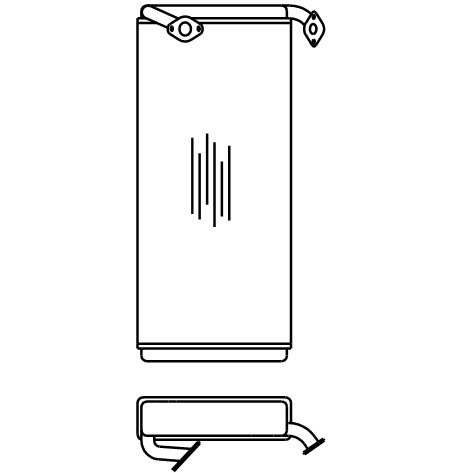

Cargo 20375 445 192 53 flange
Cargo Transit 20159 231 194 59 3/4"

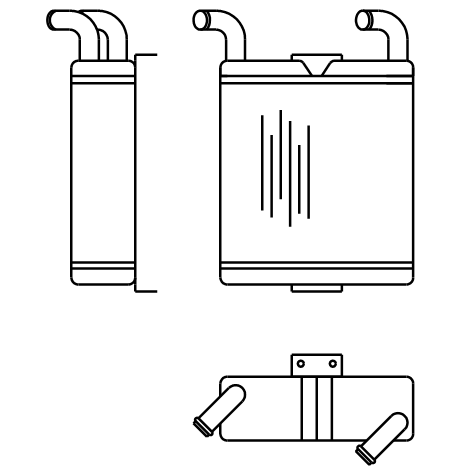

Coach Underseat 20111 225 164 59 3/4"

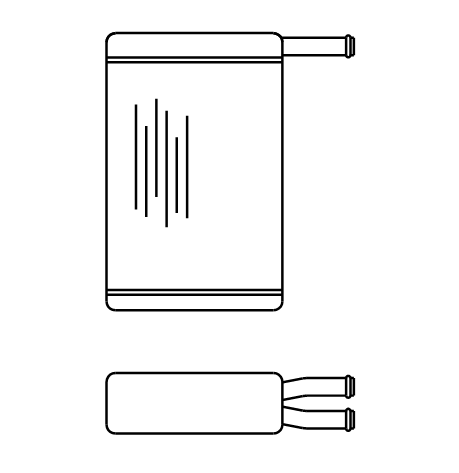

Courier 20365 252 157 48 5/8"

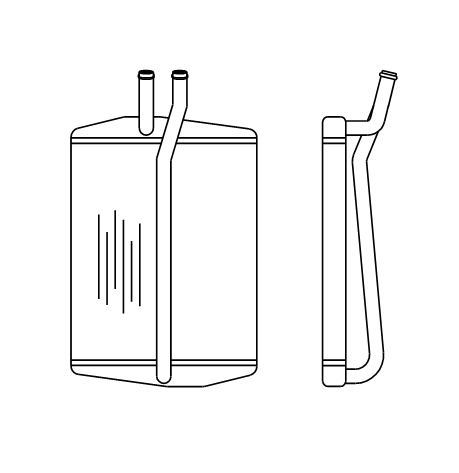

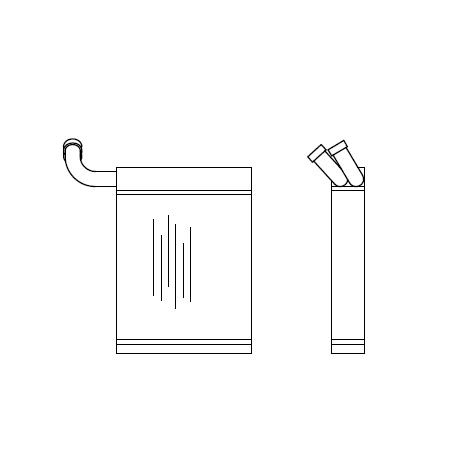

Courier Van 1996-02 20899 305 205 29 5/8"
Escort Van 1976-80 20123 260 157 48 5/8"

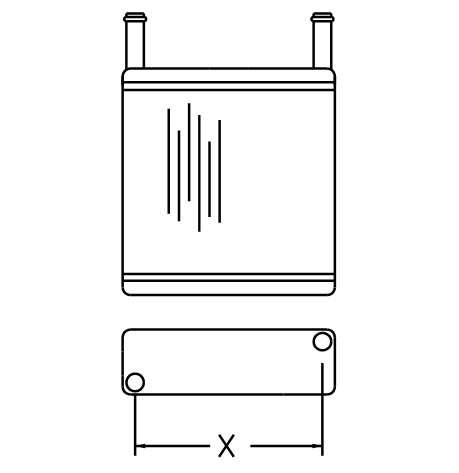

P100 Pick Up 20175 206 194 59 5/8"
P100 pick up (early) 20199 200 192 53 15mm

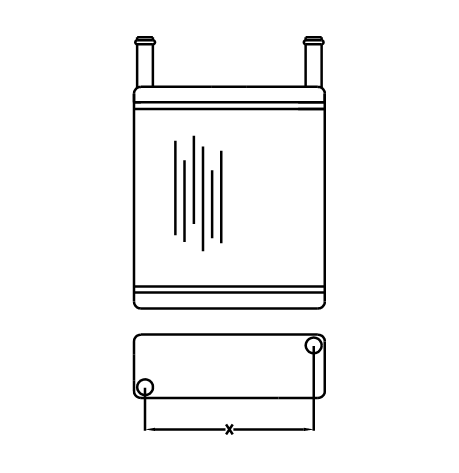

P100 Pick Up 1982-87 20101 206 194 64 5/8"

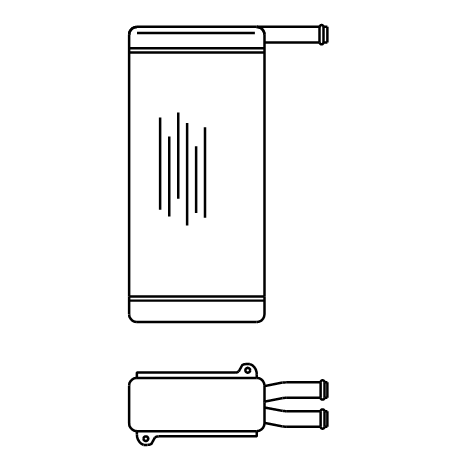

P100 Pick Up 1987-83 20171 302 140 48 5/8"

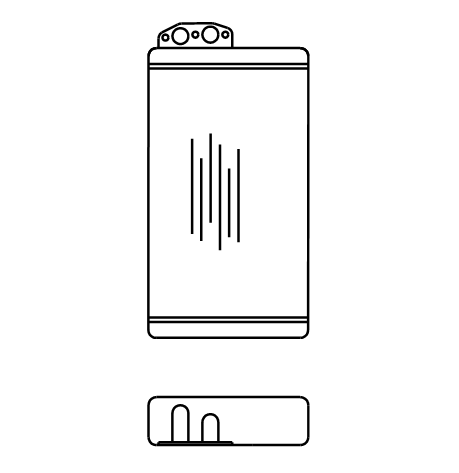

Transit 20241 290 157 48 flange

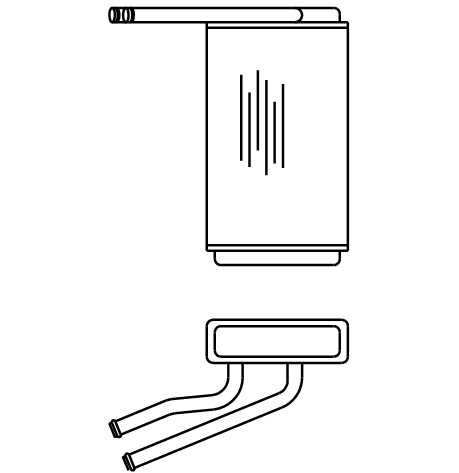

Transit 1991-95 20330 288 157 48 5/8"

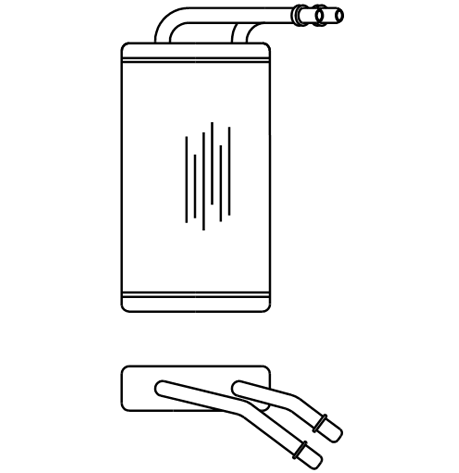

Transit 1995- 20478 274 157 48 5/8"

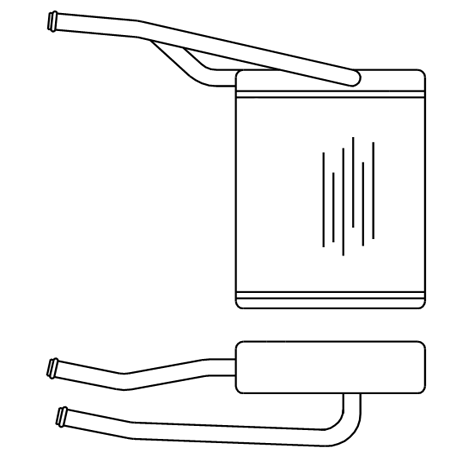

Transit Connect 20846 237 178 49 3/4"

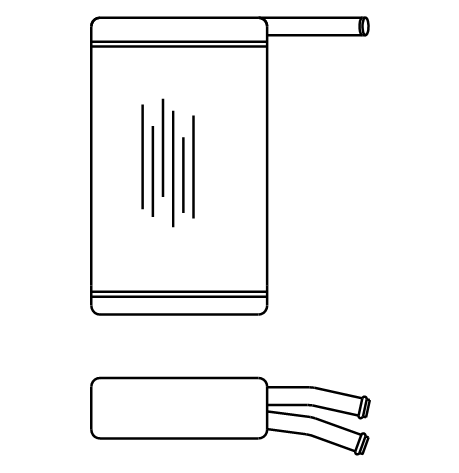

Transit Mk2 1978-84 20120 260 157 48 5/8"

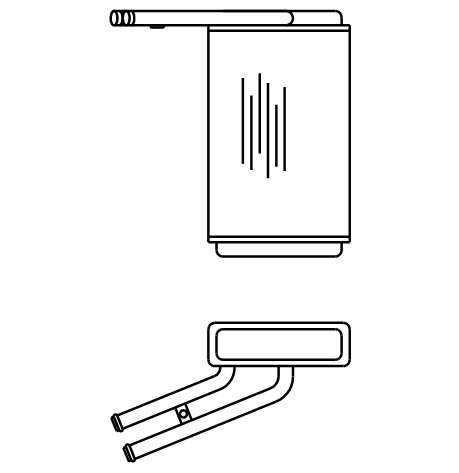

Transit Mk3 1983-85 20176 273 157 48 5/8"

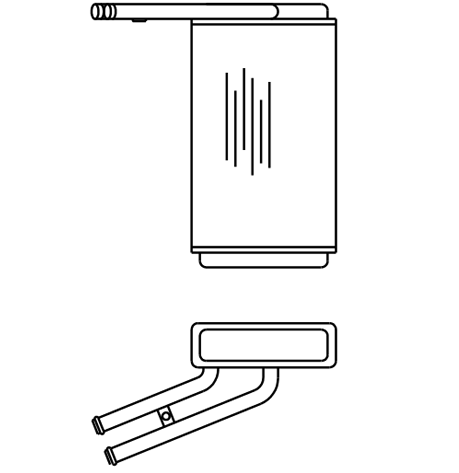

Transit Mk4 1986-91 20178 286 157 48 5/8"

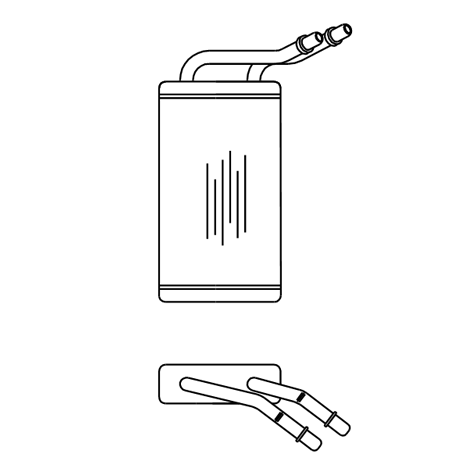

Transit Mk6 2000-06 20870 272 150 57 5/8"

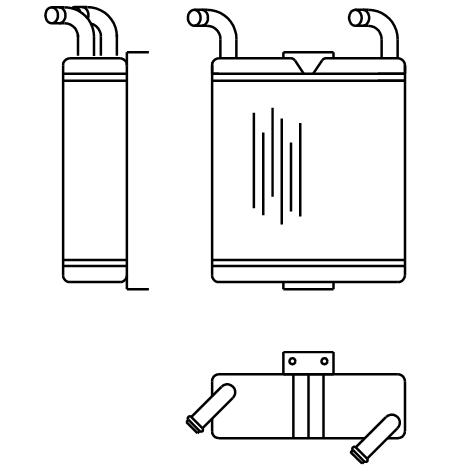

Transit Underseat 20209 225 194 64 5/8"

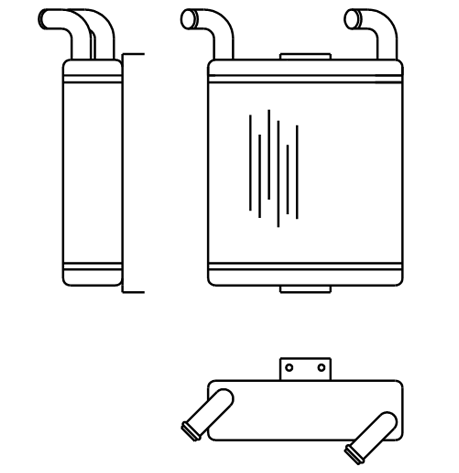

Underseat 20142 225 194 59 3/4"
