Contents Heater Matrix - Mazda Contents
Application Htr No. Height Width  Depth Pipe dia Image

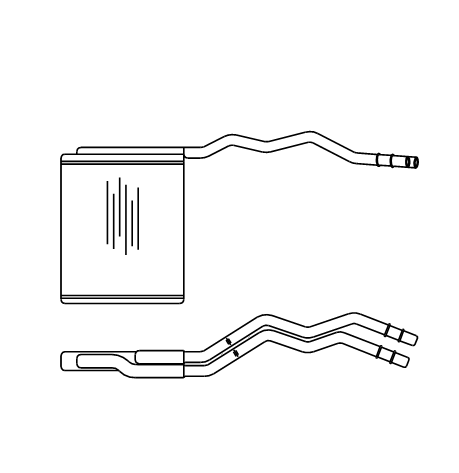

3 20861 238 185 28 5/8" mazda 3 heater matrix
323 1987-89 lhd 20797 170 160 56 5/8" & flange
323 1994 lhd 20799 172 182 41 5/8"

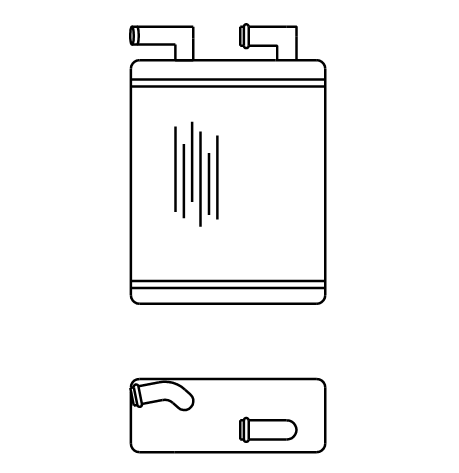

626 1983 20244 200 163 67 5/8"
626 -1983 20245 200 163 67 5/8" & flange

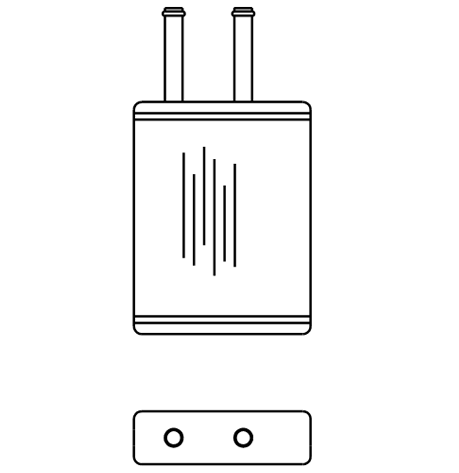

626 (lV) 1991-97 20777 210 162 50 5/8"

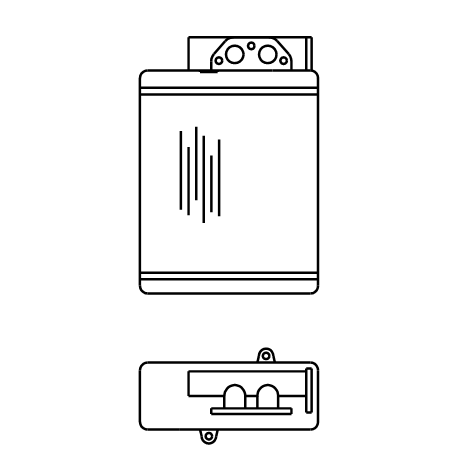

626 left Hand Drive 1983- 20231 200 170 63 valve
626 right Hand Drive 1983- 20259 200 170 63 valve

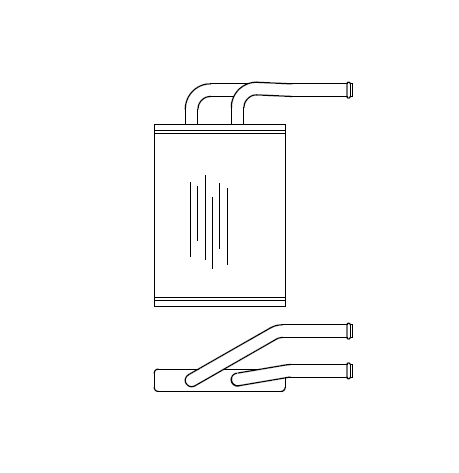

Bongo (front)1995-99 (+/-ac) 20852 227 160 55 5/8"

Bongo (rear) 1995-99 (+/- ac)

click on drawing for details

20902 215 160 39 5/8"

Bravo B2500

click on drawing for details

20754 187 170 35 5/8"

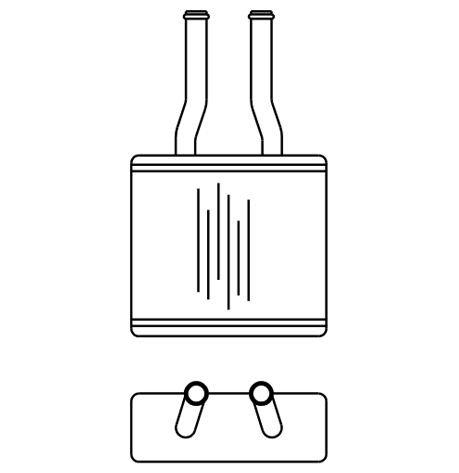

Demio 1999 lhd 20798 167 183 58 3/4"

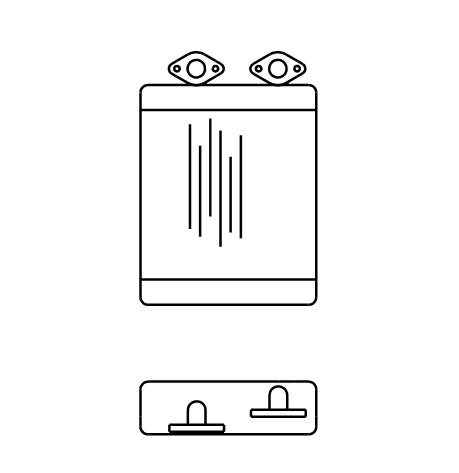

E2000 20317 200 162 50 flange

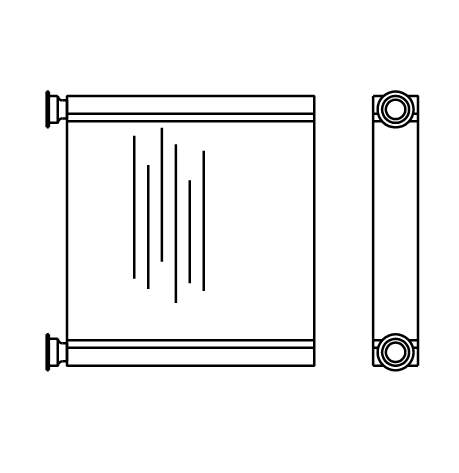

E2001 20833 180 165 30 flange

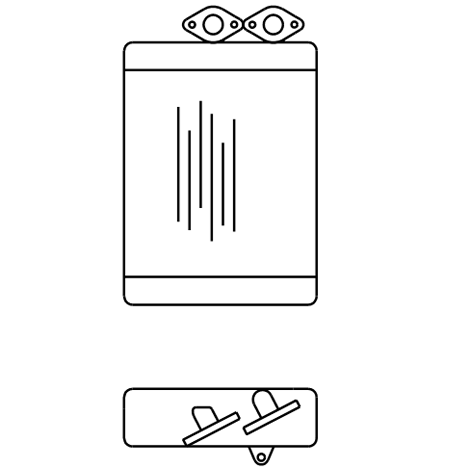

E2200 1990- 20670 218 162 50 flange

E2200 1999 onwards

click on picture for more info

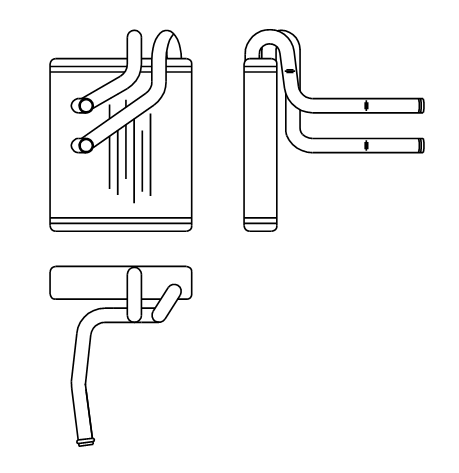

20958 195 160 38 5/8" mazda e2200 van heatr matrix
MPV 1999 20844 160 235 34 5/8"

MX5 Mk1 1989-98

click on picture for more info

20845 213 140 42 5/8"

MX5 Mk2 1998-2005

(click picture for more info)

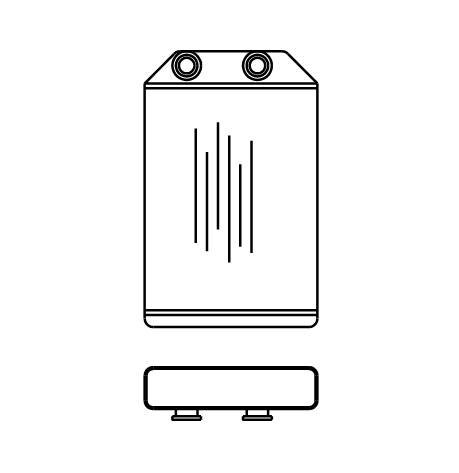

20788 230 150 35 flange

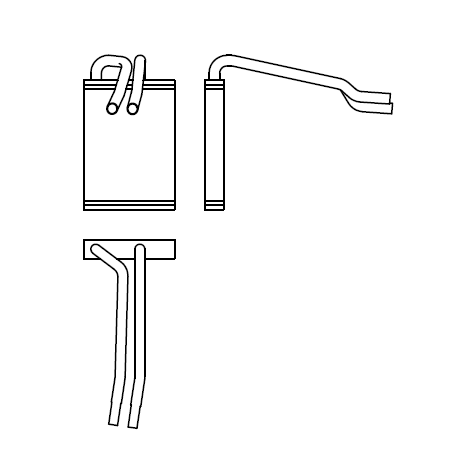

MX5 Mk3 2005-15 21038 207 165 33 18mm Heater Matrix - Mazda - MX5 Mk3 2005-15 - 21038
MX6 1991 on 20777 210 162 50 5/8" Heater Matrix - Mazda - MX6 1991 onwards - 20777
RX8 21022 120 280 26 flange mazda rx8 heater matrix
Utility Vehicle 20754 187 170 35 5/8"
Xedos 6 1991 on 20777 210 162 50 5/8" Heater Matrix - Mazda - Xedos 6 1991 onwards - 20777
