Contents Heater Matrix - Nissan Contents
Application Htr No. Height Width  Depth Pipe dia Image
200 SX 1997- 20761 205 170 35 flange

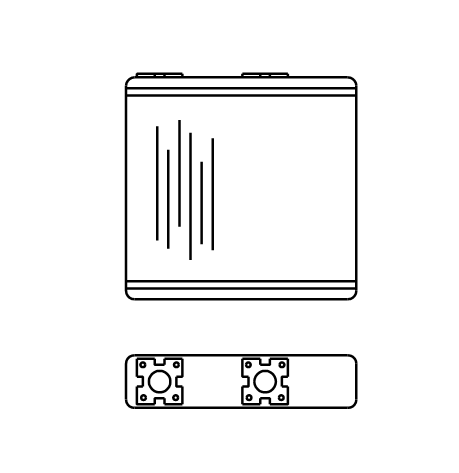

Almera N15 1995-00 20479 185 192 44 flange Heater Matrix - Nissan - Almera N15 1995-2000 - 20479

Almera N16 2000-06 (Also Tino)

click on picture for more info

21061 195 225 42 flange Heater Matrix - Nissan - Almera N16 2000-06 - 21061

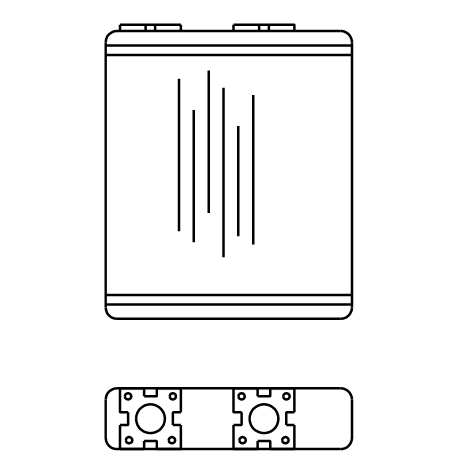

Apache 20683 181 154 38 flange
Cabstar 1987-2006 20539 212 154 38 flange

Micra K13 2010-16

click on picture for more info

21047 185 165 35 flange Heater Matrix - Nissan - Micra K13 2010-16 - 21047

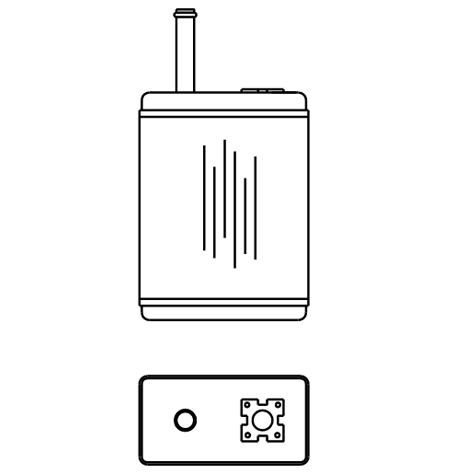

Micra -1992 20642 206 154 79 5/8" & flange

Micra 1991-2001

click on picture for more info

20479 185 192 44 flange

Murano 2004

click on picture for more info

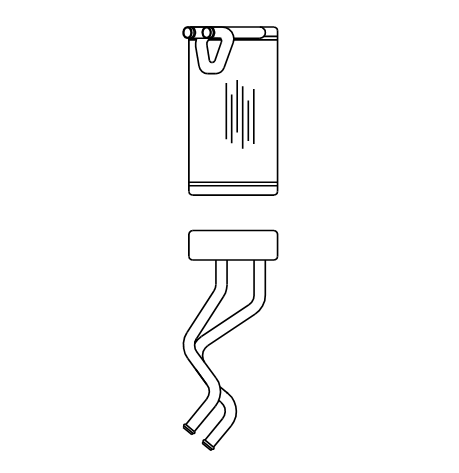

20905 285 150 50   Nissan Murano Heater matrix

Navara D21 & D22 1992 onwards

click on picture for more info

20683 181 154 38 flange

Navara D40 2006-14

click on picture for more info

20905 285 150 50 3/4"

Navara D40 (MNT) 2007 onwards

Click on picture for more info

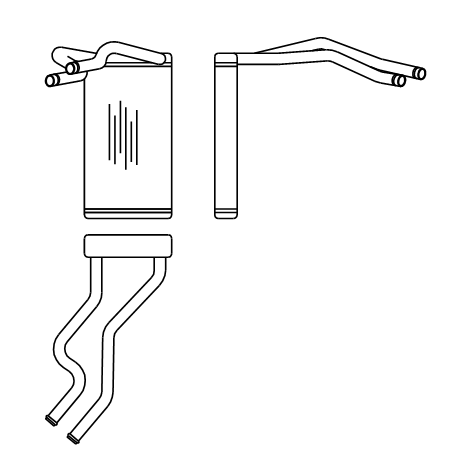

20973 280 148 38 3/4" nissan navara heater matrix

Pathfinder 2005 onwards

click on picture for more info

20905 285 150 50 3/4" nissan pathfinder heater matrix

Patrol (GR Y61) 1997-2013

UK version

20479 185 192 44 flange

Patrol (GU) 1997-2000

Thin version

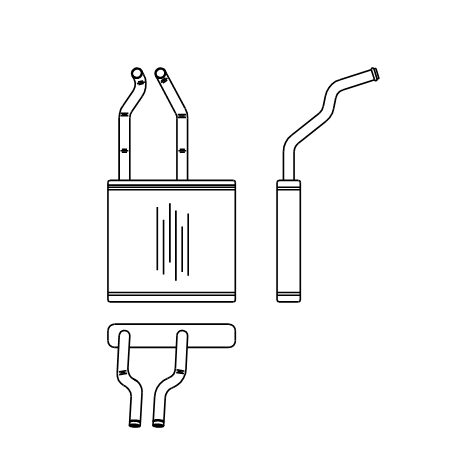

20900 183 195 53 5/8"

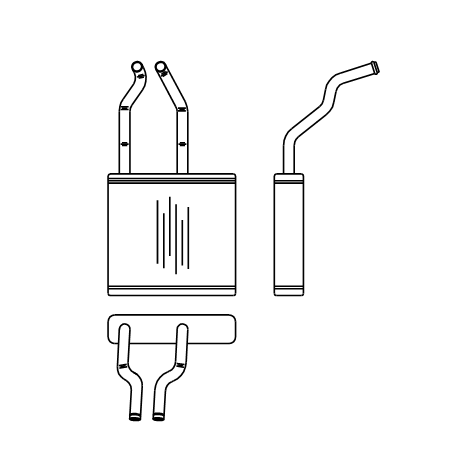

Patrol (GU) 1997-2000

Thick version

20859 183 195 53 5/8"

Primastar

click on picture for more info

20956 300 150 42 flange nissan primastar heater matrix
Primera P12 2002-06 21016 195 225 42 flange Heater Matrix - Nissan - Primera P12 2002 -2006 - 21061
Primera 1990-2001 (P10 P11) 20479 185 192 44 flange

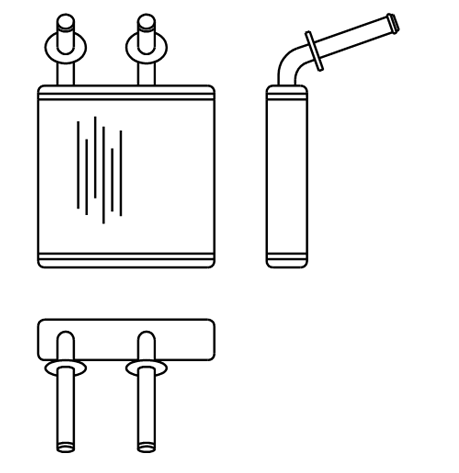

Primera 1996- 20498 198 192 44 3/4"

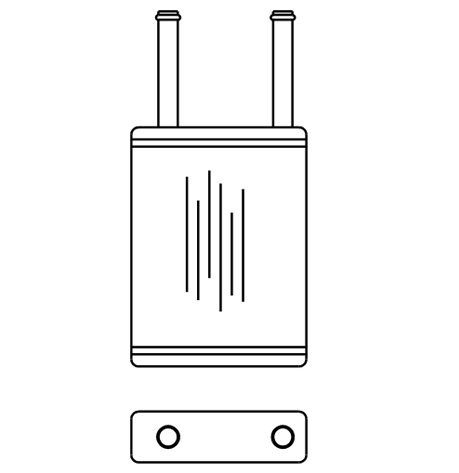

Pulsar 20807 198 145 42 5/8"
Qashqai Mk1 J10 2007 on 20980 205 195 33 3/4" nissan qashqai heater matrix

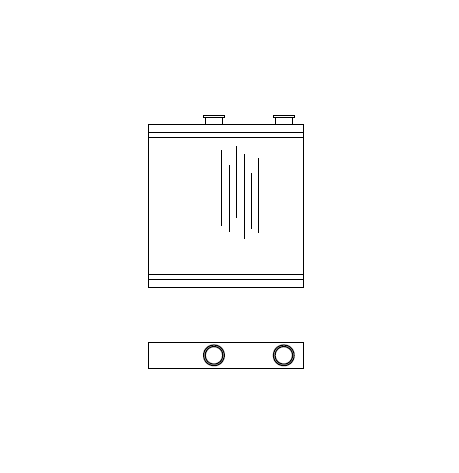

Qashqai Mk1 J10 2007 on (flanges) 21058 205 195 33 Flange Qashqai Mk1 J10 2007 on
Qashqai J11 2013-16 21056 230 165 35 Flange nissan qashqai heater matrix

Serena 1991-2001

(C23 model)

20539 212 154 38 flange

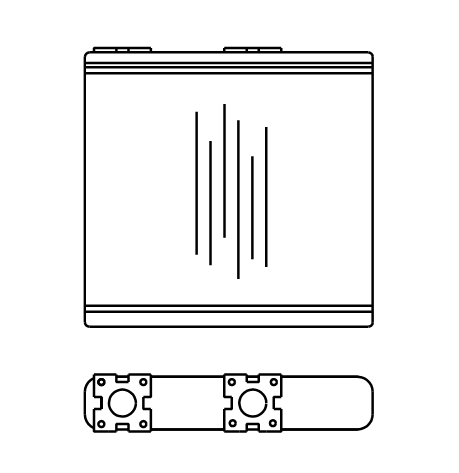

Skyline R33 20758 183 195 35 flange

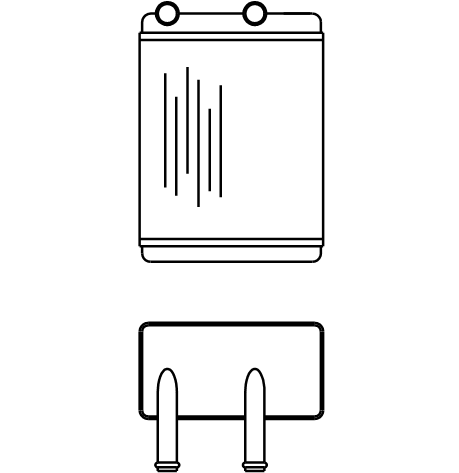

Stanza 1981-86 20224 210 154 79 5/8"
Stanza 1981-86 20275 210 154 79 5/8" & flange

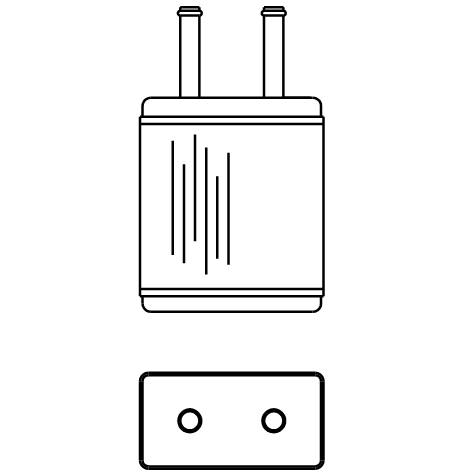

Sunny 1981-86 20196 186 154 79 5/8"
Sunny Mk3 1990-98 20479 185 192 44 flange
Terrano 2 1993-2006 20518 213 157 45 flange
Vanette 1985-99 (C22) 20539 212 154 38 flange

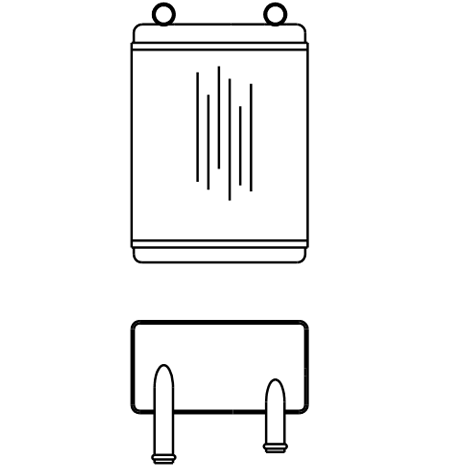

Vanette 1978-88 20598 207 154 79 5/8"
X Trail T31 2007-10 21058 205 195 33 3/4" xtrail heater matrix
X Trail 2000-07 21056 230 165 35 Flange nissan x trail heater matrix
