Contents Heater Matrix - Subaru Contents
Application Htr No. Height Width  Depth Pipe dia Image
Impreza 2 Litre Sport 1996-98 20822 195 160 35 5/8"

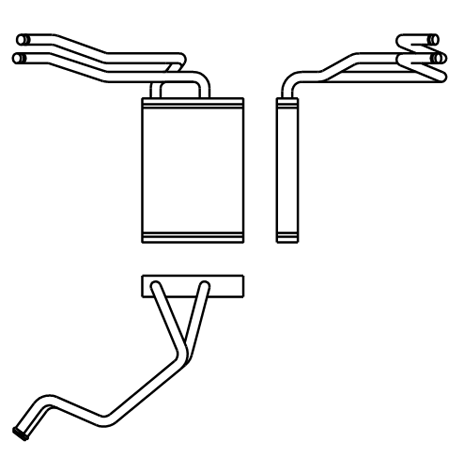

Impreza 2002-04 WRX Turbo & AWD

(click on picture for more info)

20752 232 165 34 5/8"

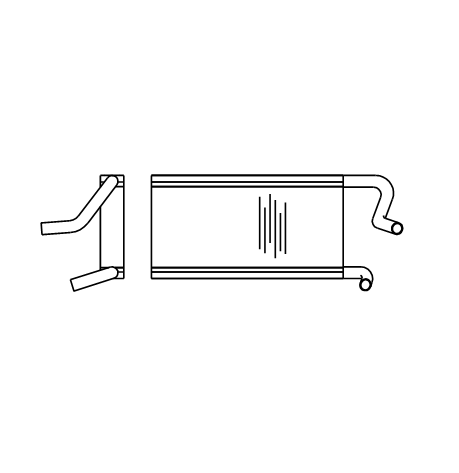

Impreza 2007-2011 (GE GH GR GV)

click on picture for important info!!

20943 142 260 35 5/8" subaru impreza heater matrix

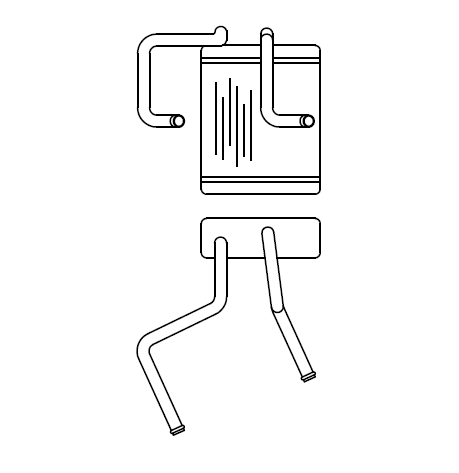

Impreza WRX Turbo 1995-96

(click on picture for more info)

20848 200 160 54 5/8"
Impreza WRX Turbo 1996-98 20822 195 160 35 5/8"

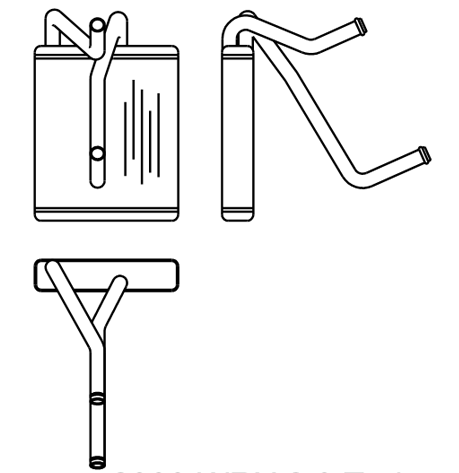

Impreza WRX Turbo 1999-2000

(click on picture for more info)

20823 195 160 35 5/8"

Forester 1998-2002

Click on drawing for more info

20823 195 160 35 5/8"

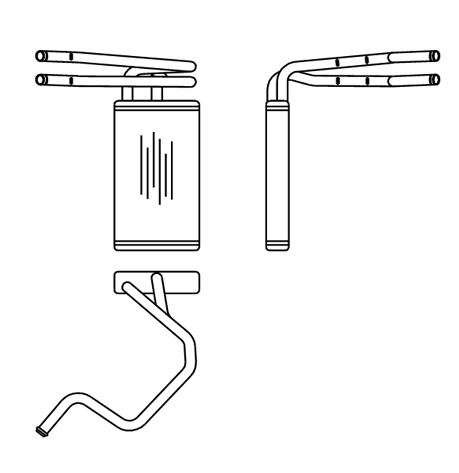

Forester 2001-05

Click on drawing for more info

20878 240 130 35 5/8"

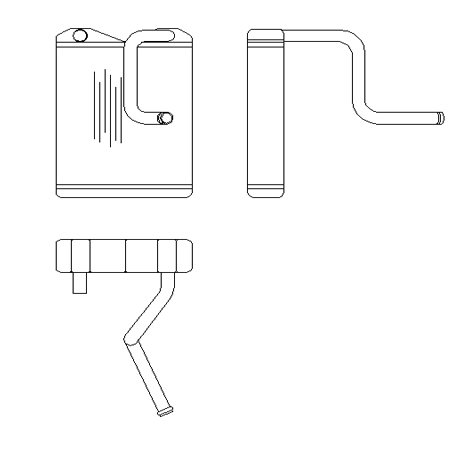

Legacy 1994-97 20925 230 165 43 5/8"

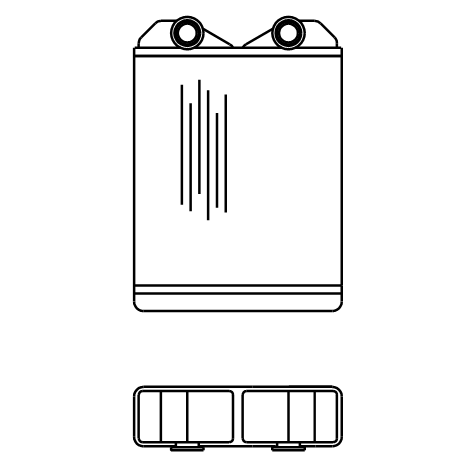

Legacy 1997-2003 20734 215 154 44 flange

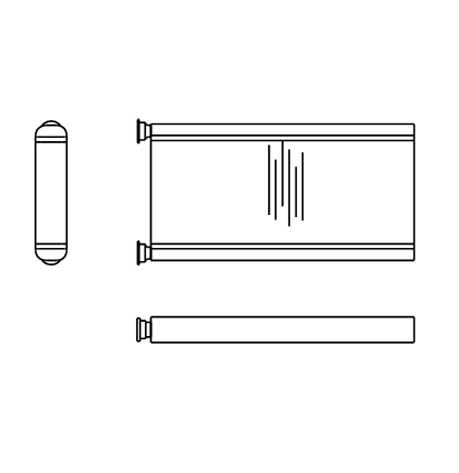

Legacy 2003-2007 Mk4 20926 140 270 32 flange

Legacy Mk4 2007 onwards

click on the picture for more info

21001 130 270 32 flange Heater Matrix - Subaru - Legacy Mk4 2007 onward

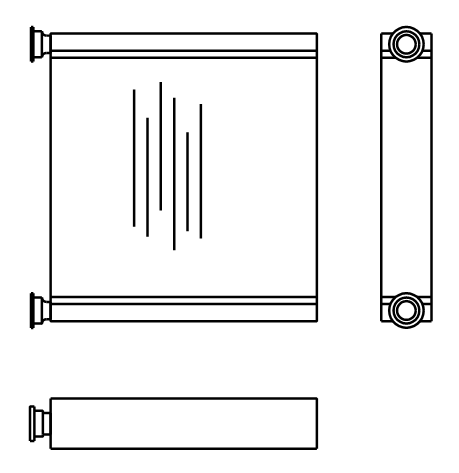

Legacy Outback mk3 1998-03 20768 200 185 35 flange
Legacy Outback 2007 onwards 21001 130 270 32 flange Heater Matrix - Subaru - Legacy Outback 2007 onward - 21001
Liberty 20734 215 154 44 flange
Liberty 2003- 20768 200 185 35 flange
