| Contents | Heater Matrix - Toyota | Contents |
| Application | Htr No. | Height | Width | Depth | Pipe dia | Image |
|
LHD Click on picture for more info |
21059 | 172 | 243 | 32 | flange |  |
| Altezza 2001 | 20778 | 140 | 270 | 35 | flange |  |
| Aristo Vertex | 20778 | 140 | 270 | 35 | flange | |

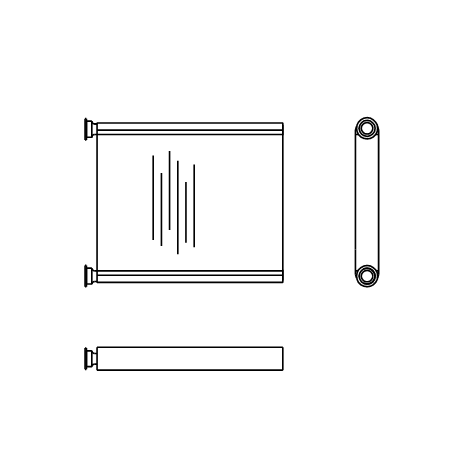

| 20915 | 180 | 210 | 26 | flange |  |
|

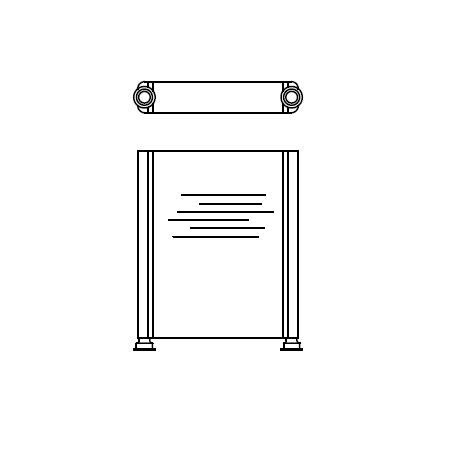

| Avensis 2009 onwards | 21050 | 180 | 210 | 32 | flange |  |

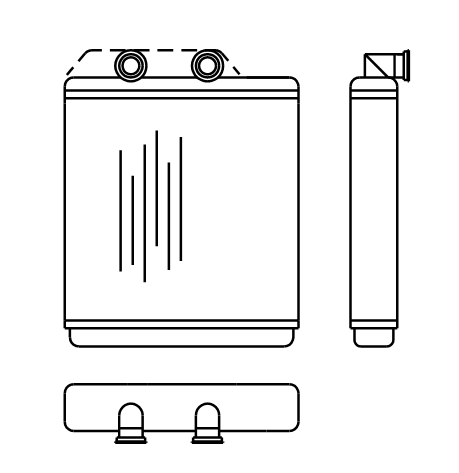

| Avensis 1998-02 | 20839 | 228 | 185 | 36 | flange |  |
|
Click on picture for more information |
20915 | 180 | 210 | 26 | flange | |
Avensis 2003-2008 (vehicles with climate control) Click on picture for more information |
20961 | 180 | 220 | 34 | flange |  |

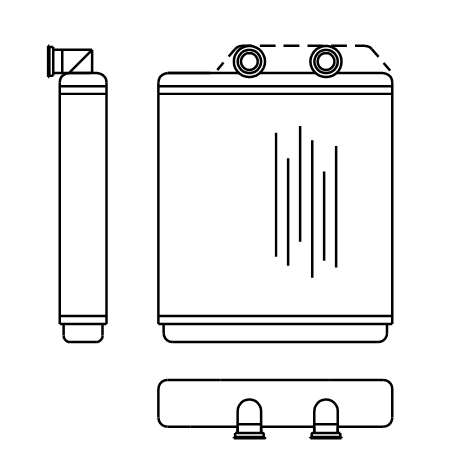

| Avensis 1998-00 Lhd | 20802 | 228 | 185 | 36 | flange |  |

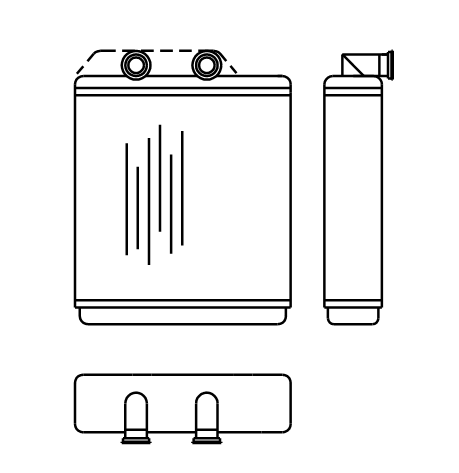

| Avensis ACM20 | 20760 | 228 | 180 | 48 | flange |  |
| Caldina | 20760 | 228 | 180 | 48 | flange | |

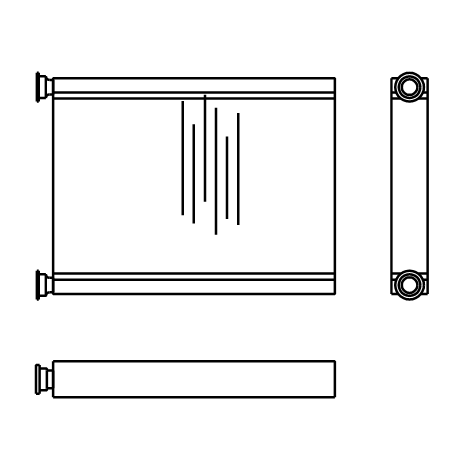

| Camry CU36 2002- | 20769 | 149 | 235 | 30 | flange |  |

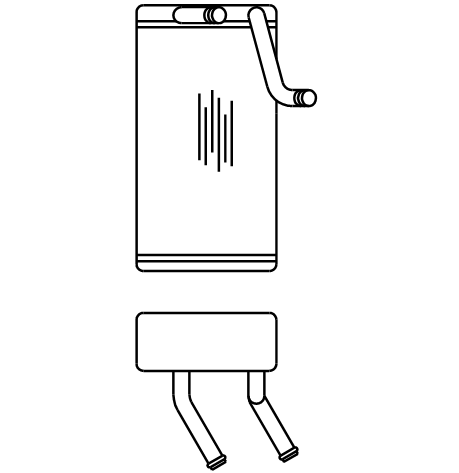

| Carina 2 1987-92 | 20610 | 265 | 140 | 58 | 5/8" |  |

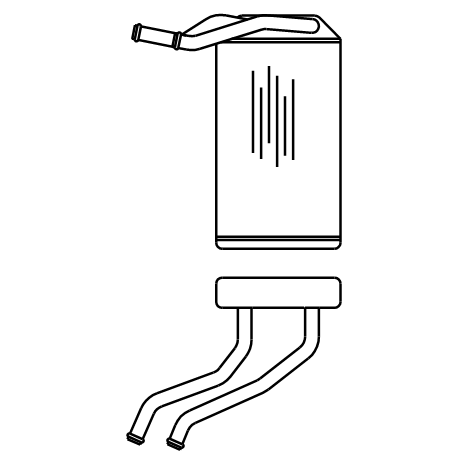

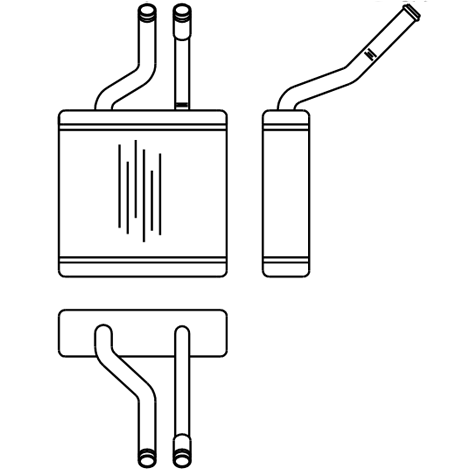

| Cavalier 1997- | 20795 | 220 | 200 | 42 | 3/4" |  |

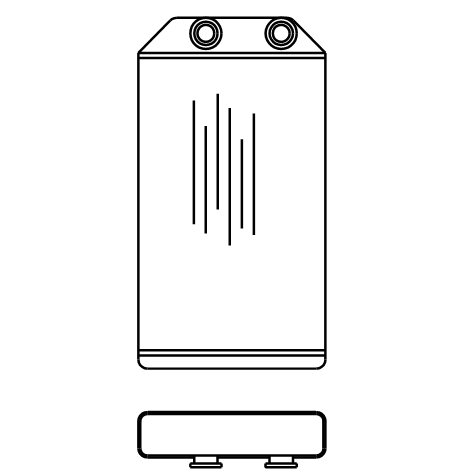

| Celica ST204 ST202 T20 1994-99 | 20733 | 270 | 156 | 35 | flange |  |
|
Click on picture for more information |

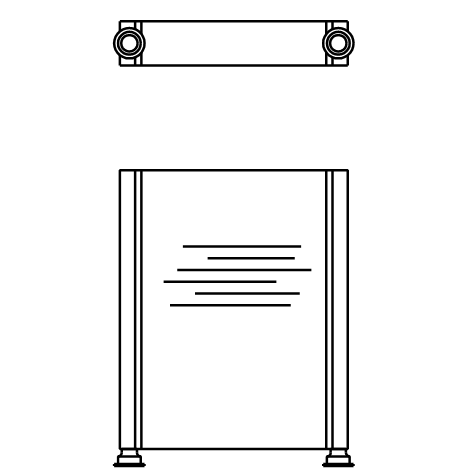

20740 | 180 | 220 | 34 | flange |  |

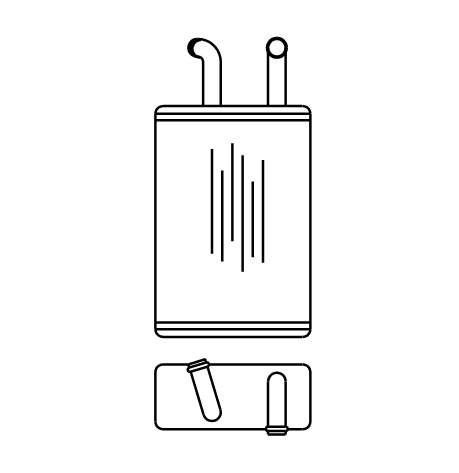

| Corolla 1970-85 | 20201 | 210 | 141 | 60 | 5/8" |  |

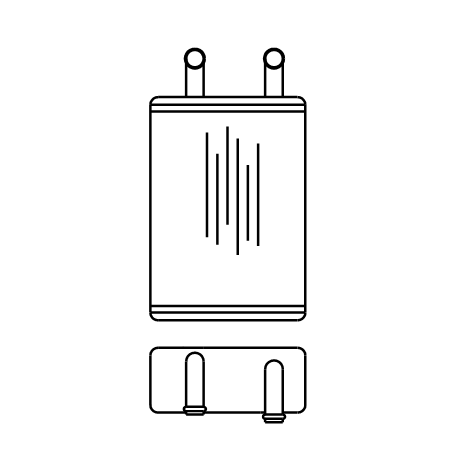

| Corolla 1986- | 20451 | 203 | 141 | 60 | 5/8" |  |

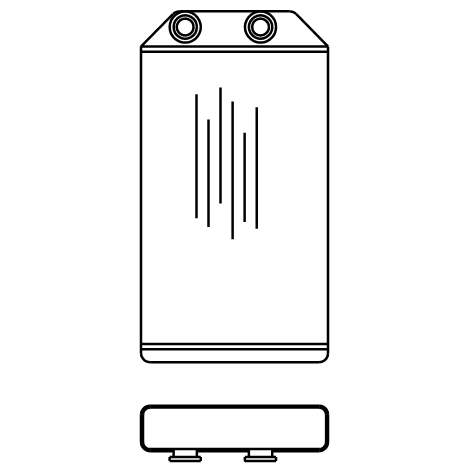

| Corolla AE112 | 20741 | 270 | 156 | 35 | flange |  |

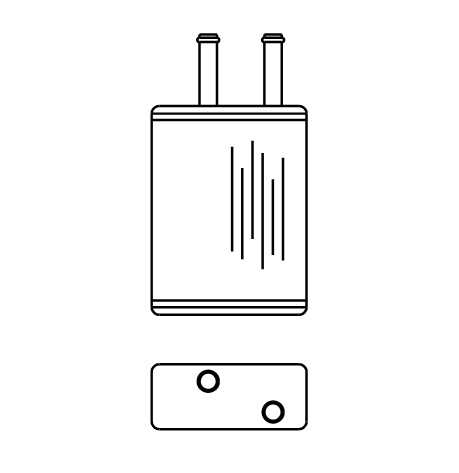

| Corolla AE80 1983-87 | 20397 | 190 | 141 | 60 | 5/8" |  |
Corolla 1999-2004 (including T Sport) click on drawing for details | 20740 | 180 | 220 | 34 | flange | |
Corolla 2002-2005 (climate control vehicles) Corolla Verso 2005-08 (climate control vehicles) click on drawing for details |
20915 | 180 | 210 | 26 | flange | |
|
click on drawing for details |
20961 | 180 | 220 | 34 | flange | |
Corolla 1999-2004(some models) click on drawing for details |
20873 | 170 | 222 | 35 | flange |  |
| Corona | 20760 | 228 | 180 | 48 | flange | |
| Corona (import) | 20839 | 228 | 185 | 36 | flange | |

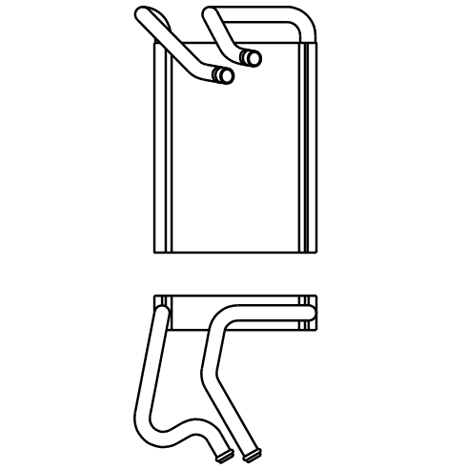

| Echo 1999-2005 (pipes) | 20719 | 170 | 222 | 35 | 5/8" |  |
|
click on picture for more info |

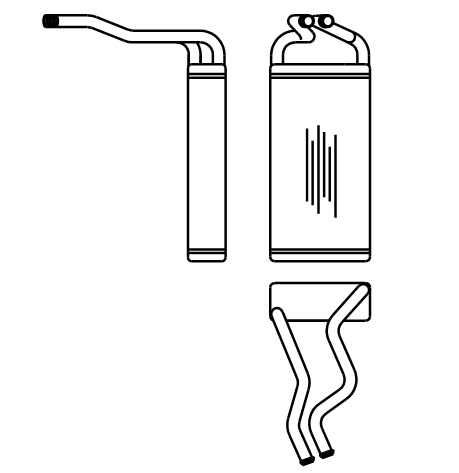

20745 | 320 | 160 | 60 | 3/4" |  |

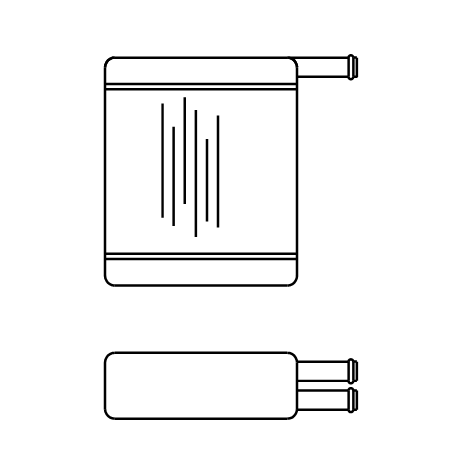

| Forklift | 20601 | 190 | 157 | 48 | 5/8" |  |

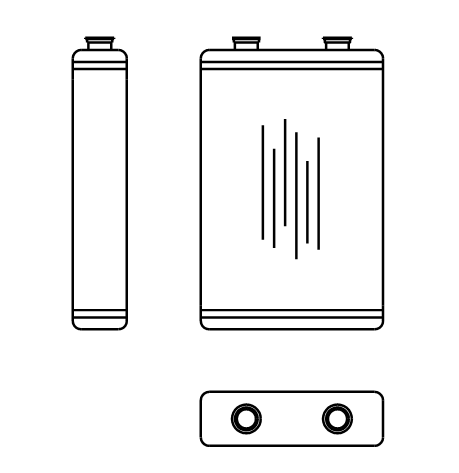

| Granvia 1995- | 20697 | 234 | 154 | 45 | 5/8" |  |

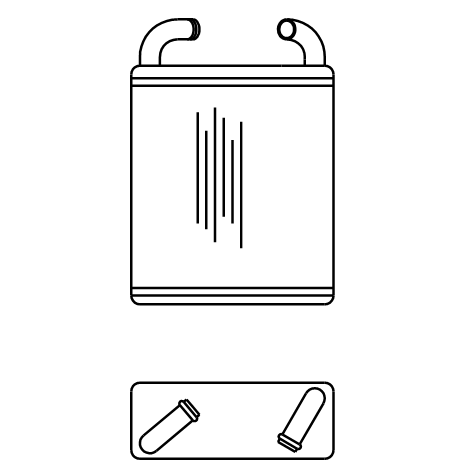

| Hi ace 1982 | 20727 | 191 | 162 | 61 | 5/8" |  |
| Hi Ace 1995 -2010 (flanges) | 20697 | 234 | 154 | 45 | flange |  |
|

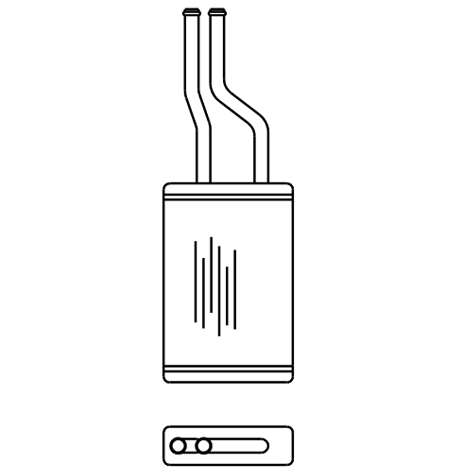

Click on drawing for extra details | 20604 | 234 | 154 | 45 | 5/8" |  |

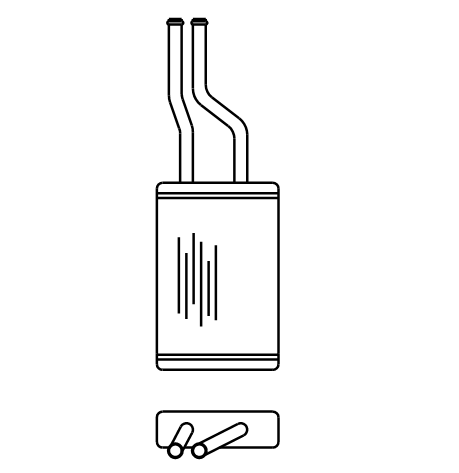

| Hi Ace 1995- Lhd | 20757 | 234 | 154 | 54 | 5/8" |  |
|
Click on drawing for extra details
| 20692 | 270 | 150 | 35 | flange |  |

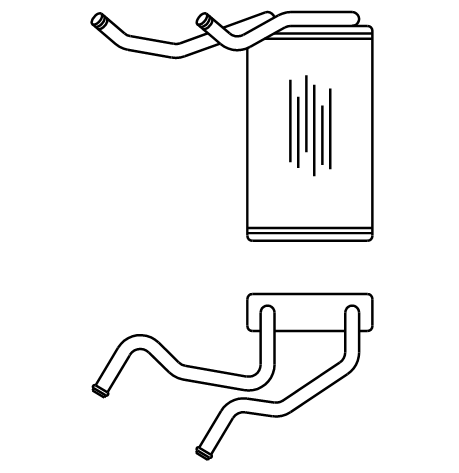

| Hi Lux 1996-2003 +- Air Con | 20785 | 270 | 150 | 35 | 5/8" |  |
|
Click on drawing for extra details | 20784 | 264 | 145 | 43 | 5/8" |  |
| Hi Lux 2004 onwards | 20915 | 180 | 210 | 26 | flange | |

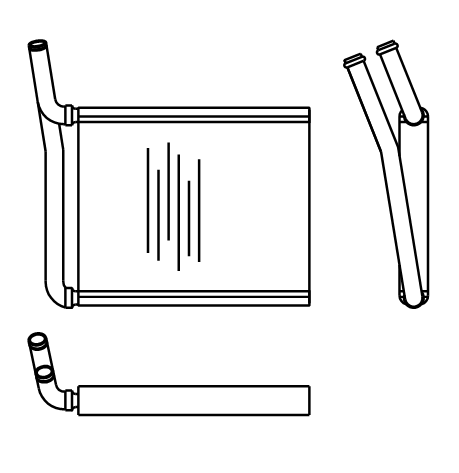

| Hi Lux 2004 onwards (pipes) | 20827 | 180 | 210 | 26 | 5/8" |  |
Hi Lux Surf 1986-96 (140mm centres) click on image for more information | 20784 | 264 | 145 | 43 | 5/8" | |
Hi Lux Surf 1986-96 (40mm centres) 3 litre KZN 130 IKZ-TE Fore Runner 3litreTD |

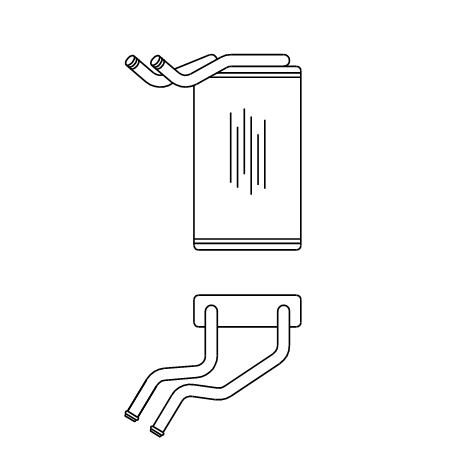

20895 | 264 | 145 | 43 | 5/8" |  |
Hi Lux Surf SSRG 96-00 (third generation) Hi-Lux/Surf import 3.0DT 1990 on KZN130/KZN185 |

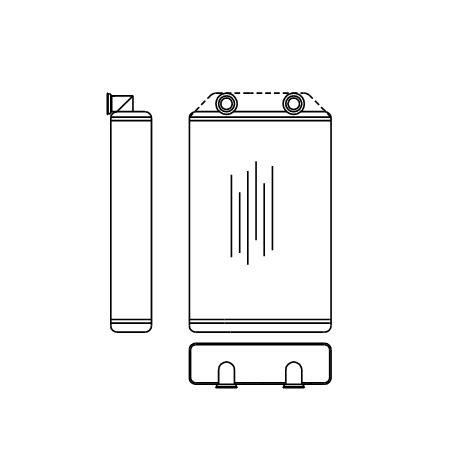

20842 | 270 | 160 | 47 | flange |  |

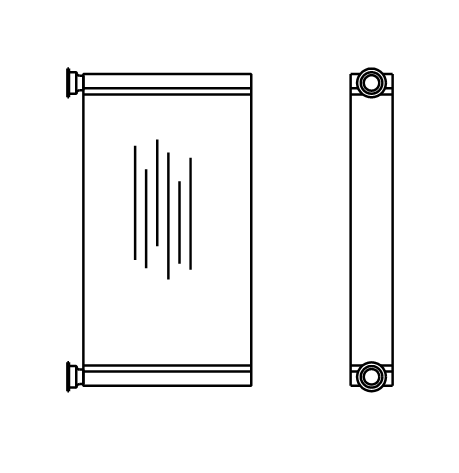

| Hino Dyna 1997- | 20792 | 260 | 140 | 35 | flange |  |

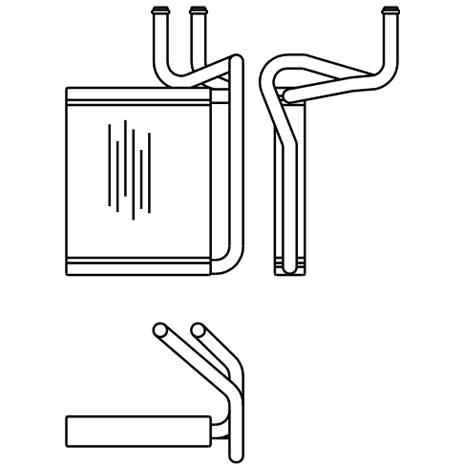

| Landcruiser 100 series 1998- | 20717 | 220 | 173 | 35 | 5/8" |  |
| Landcruiser 105 Series | 20717 | 220 | 173 | 35 | 5/8" | |
Landcruiser 120 series 2003 on click on picture for more info |

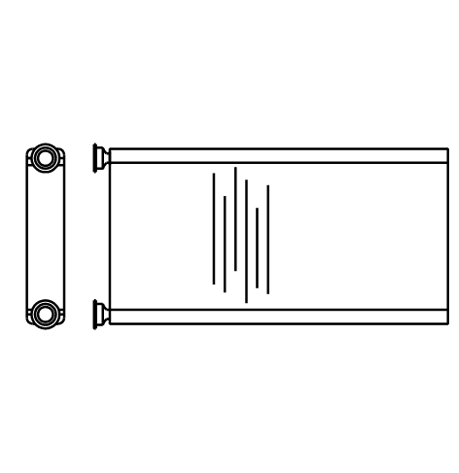

20766 | 149 | 290 | 32 | flange |  |

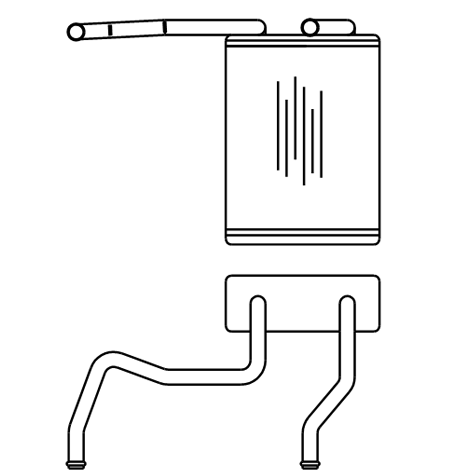

Landcruiser 80 Series 1992 onwards click on drawing for details | 20808 | 241 | 165 | 60 | 5/8" |  |

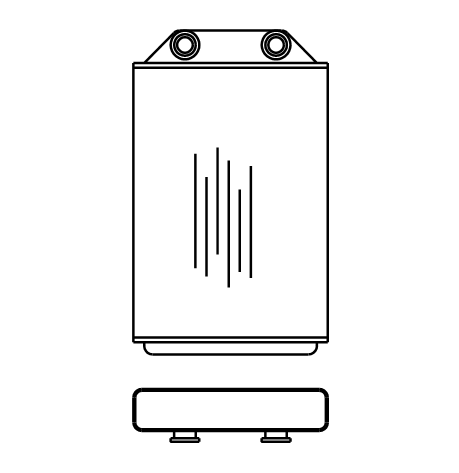

Landcruiser 90/95 Amazon & Colorado 1996-2003 +- Air Con Click on picture for extra details | 20751 | 270 | 160 | 35 | flange |  |
Landcruiser Collorado 1996-2003 +- Air Con 90 series click on picture for more info |
20842 | 270 | 160 | 47 | flange | |
Landcruiser Prado 150 2009 onwards RHD & LHD click picture for mre info |
21059 | 172 | 243 | 32 | flange | |
| MR2 Roadster 1999-2007 | 20873 | 170 | 222 | 35 | flange | |
| Optimo minibus 1996 onwards | 21100 | 250 | 160 | 47 | flange |  |
| Prado 1996-2003 +- Air Con | 20751 | 270 | 160 | 35 | flange | |
| Prado 2003 +- Air Con | 20766 | 149 | 290 | 32 | flange | |
|
click on picture for more info |
20745 | 320 | 160 | 60 | 3/4" | |
|
click on picture for more info |

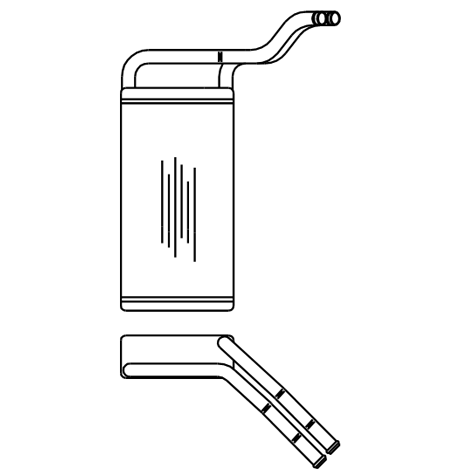

020881 | 320 | 160 | 60 | 3/4" |  |

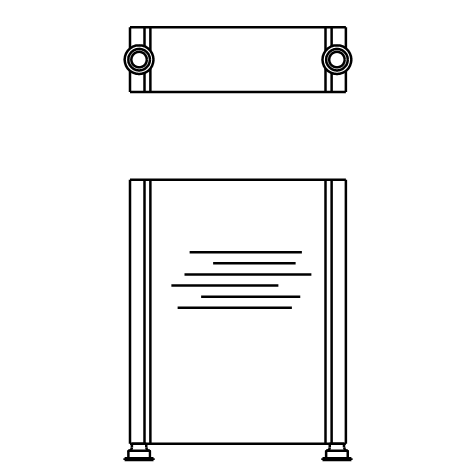

Previa Mk2 2002-06 (not climate control) Click on picture for extra details | 20739 | 180 | 220 | 54 | flange |  |
|

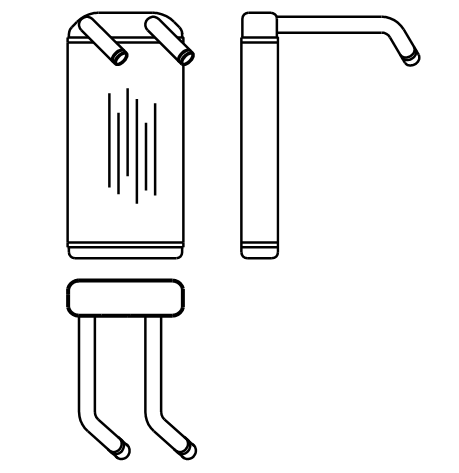

Click on picture for extra details | 20830 | 248 | 117 | 37 | 5/8" |  |
|

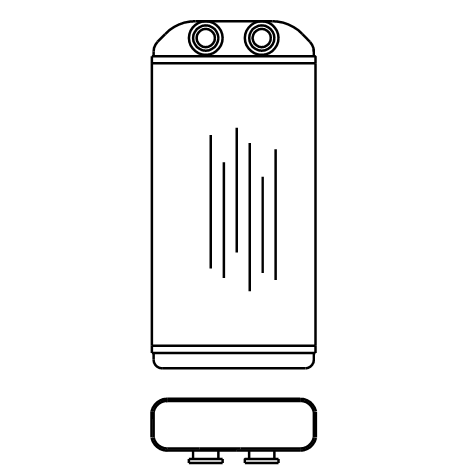

Click on picture for extra details | 20700 | 248 | 117 | 37 | flange |  |
|
Click on picture for extra details |
20740 | 180 | 220 | 34 | flange | |
| Rav 4 2005-13 | 20915 | 180 | 210 | 26 | flange | |
| Starlet (early) | 20522 | 190 | 141 | 60 | 5/8" |  |
|
Click on picture for extra details | 20700 | 248 | 117 | 37 | flange | |

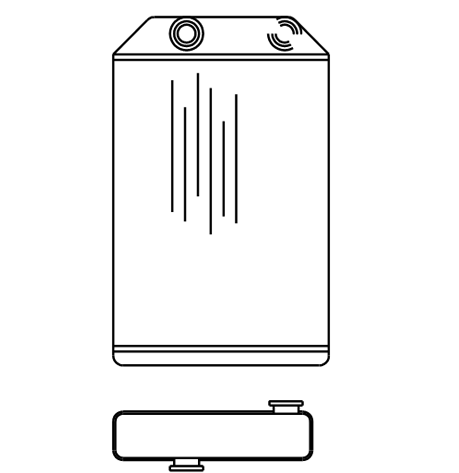

| Supra Mk4 1993-98 (Right hand drive) | 20721 | 252 | 156 | 35 | flange |  |
| Supra Mk4 1993-98 (Left hand drive) | 21077 | 252 | 156 | 35 | flange |  |
| Tarago 1990-2000 | 20881 | 320 | 160 | 60 | 3/4" | |
| Tarago 2002-05 | 20739 | 180 | 220 | 54 | flange | |
| Yaris 1999 - 2005 (without pipes) | 20873 | 170 | 222 | 35 | flange | |

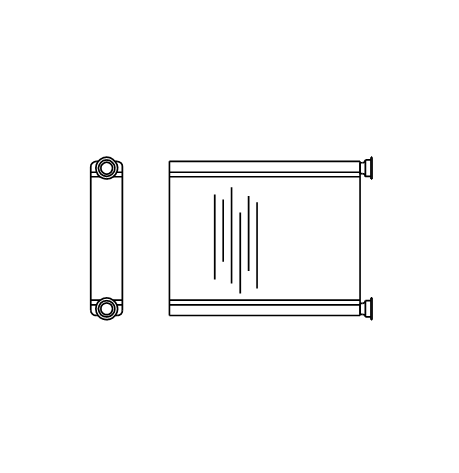

| Yaris 2006- | 20883 | 170 | 210 | 32 | flange |  |
| Yaris 1999-2005 (pipes) | 20719 | 170 | 222 | 35 | 5/8" | |
