Contents Heater Matrix - Volvo Commercial Contents
Application Htr No. Height Width  Depth Pipe dia Image

B9R / B12B

Bent pipe. Click picture for more info

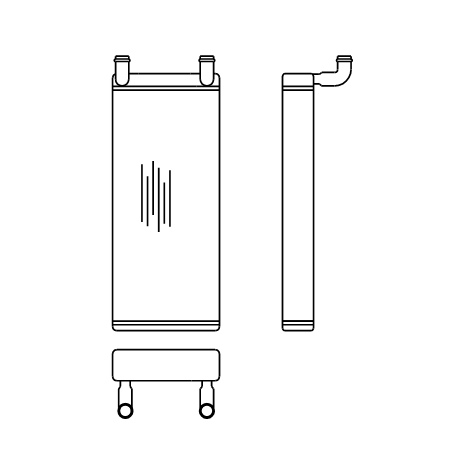

20945 425 180 42 22mm volvo b9r heater matrix

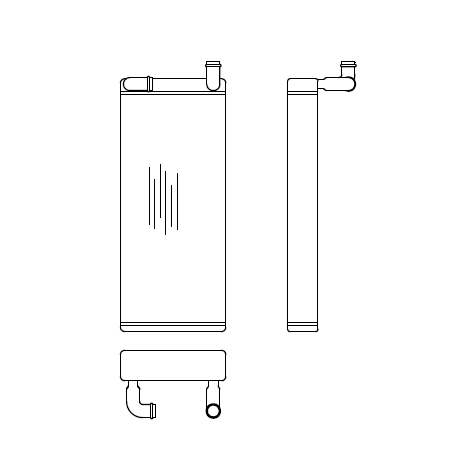

B9R / B12B

Bent pipe. Click picture for more info

21012 425 180 42 22mm volvo b9r b12b heater matrix demister

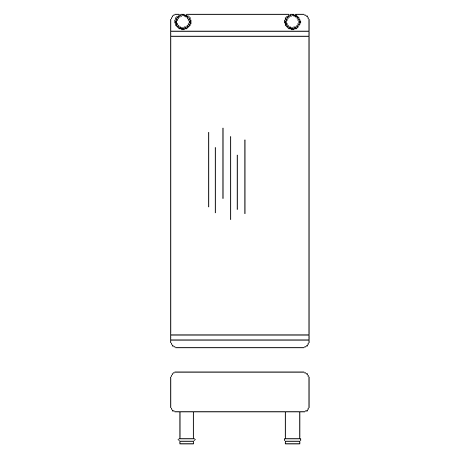

B9R

Straight pipe. Click picture for more info

20869 425 180 42 22mm volvo b9r heater matrix

B9TL

click on picture for more info

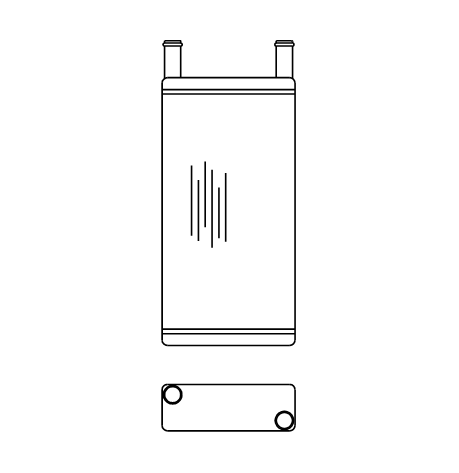

20651 363 180 62 22mm volvo B9TL heater matrix demister

B9TL

click on picture for more info

20652 363 180 62 22mm Volvo B9TL heater matrix demister

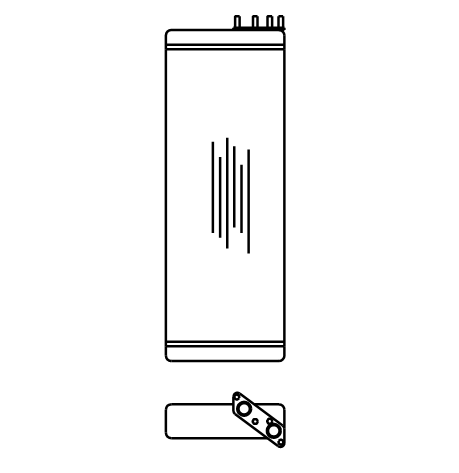

B10 20499 430 154 40 15mm volvo b10 heater matrix

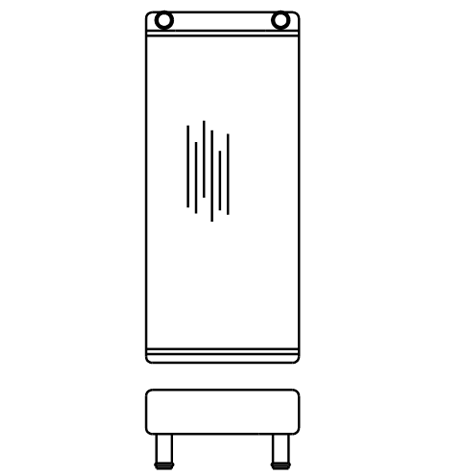

B10 (early) 20470 406 178 49 3/4"
B10 BLE 20486 372 194 59 22mm

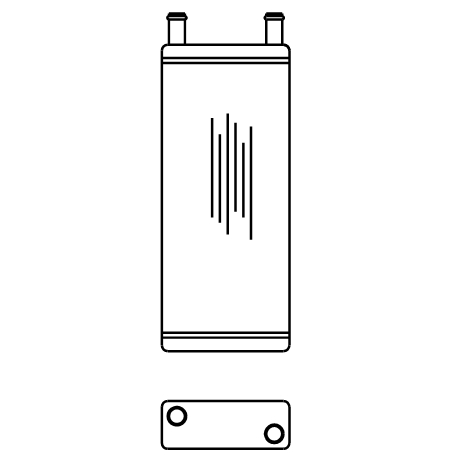

B10 mk3 20505 365 152 57 5/8"
B10M 20482 448 194 59 22mm

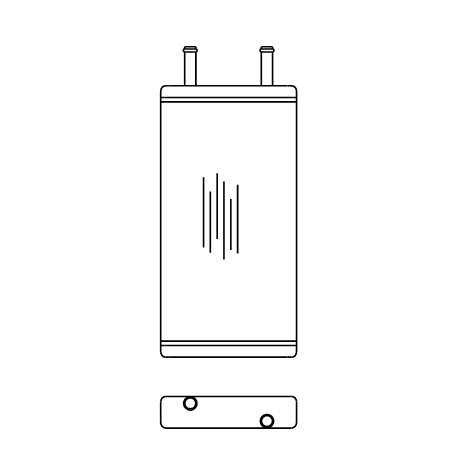

B10M

long pipe version of 20491 below

click on picture for more info

20914 365 185 43 15mm

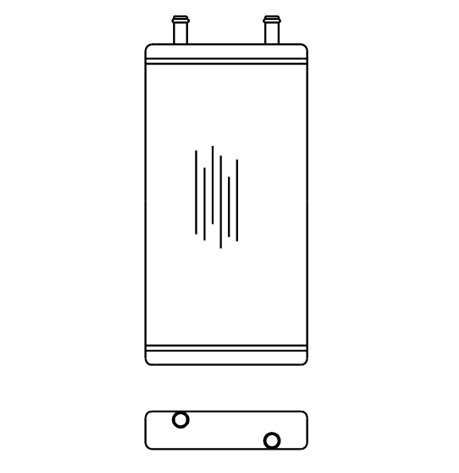

B10M 20491 365 185 43 15mm volvo B10M heater matrix

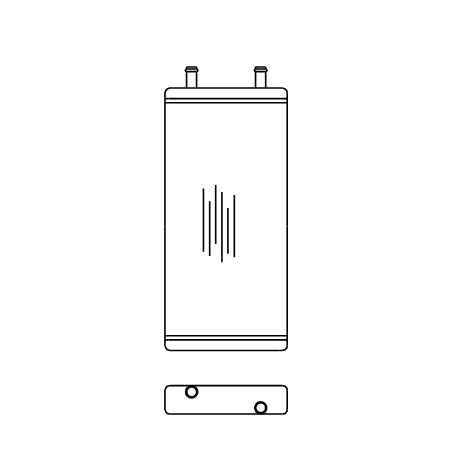

B10M 20932 395 185 43 15mm
B10M 20564 459 155 44 22mm volov B7r heater matrix

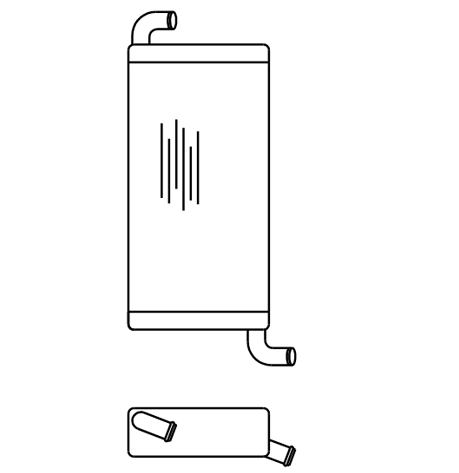

B10ML 20497 365 180 62 22mm
B12M (Sideral) 20945 425 180 42 22mm volvo b12m heater matrix

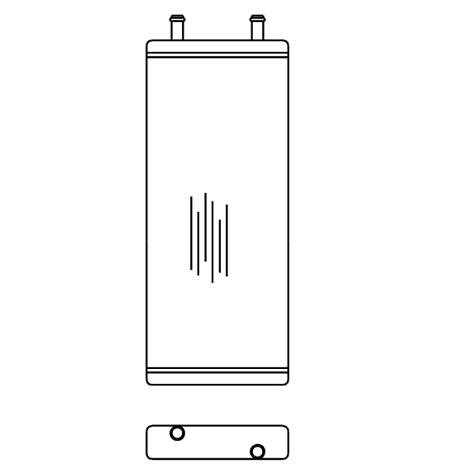

B6 20463 447 185 43 15mm

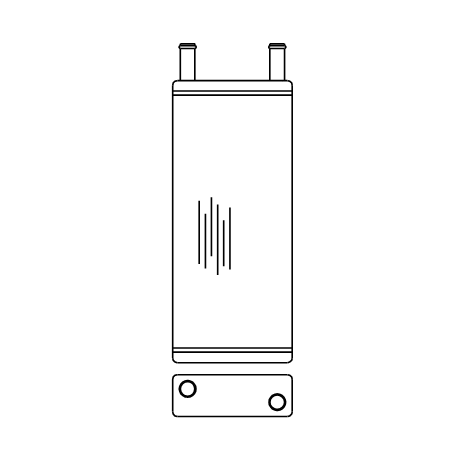

B6BLE

click on picture for more info

20912 423 180 63 22

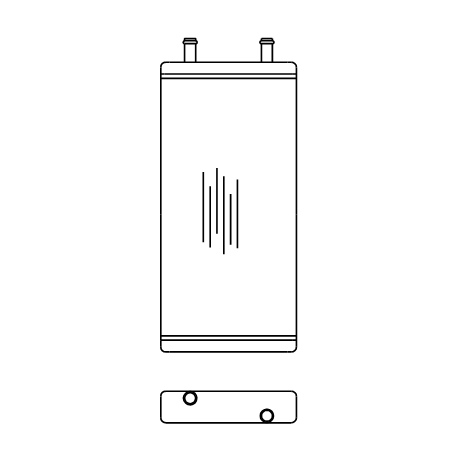

B6R 20907 426 185 43 15mm

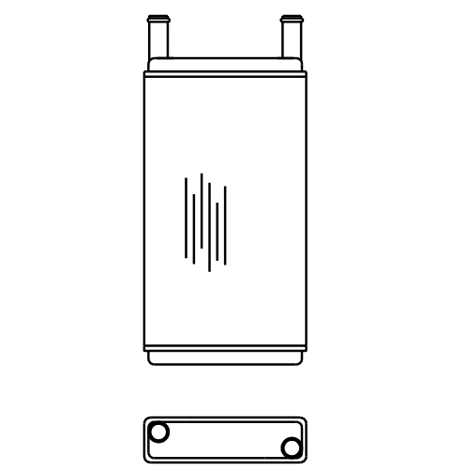

B6 (long version) 20472 363 192 53 22mm
B6 (short version) 20481 230 192 53 22mm

B76

Click on drawing for more info

20869 425 180 42 22mm volvo b76 heater matrix

B7RLE

Click on drawing for more info

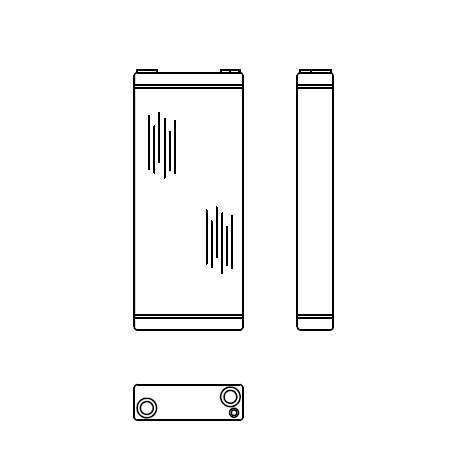

21065 460 190 60 3/4" BSP bosses Heater Matrix - Volvo Commercial - B Series B7RLE - 21065

B7TL

Click on drawing for more info

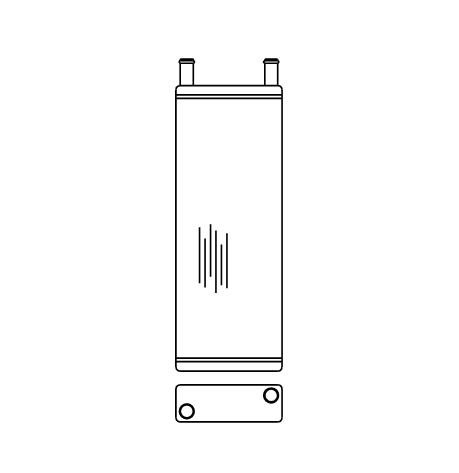

20908 360 180 62 22mm Volvo B7TL heater matrix

B7TL

Click on drawing for more info

20909 484 180 62 22mm

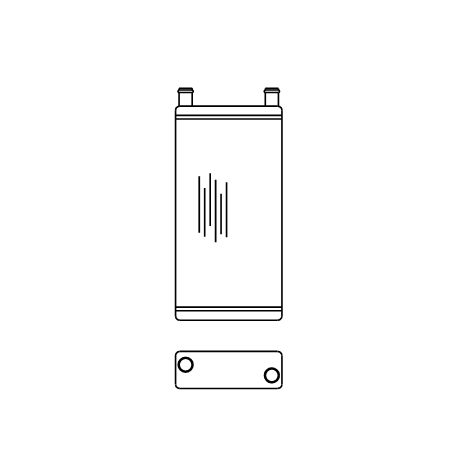

B7TL

Click on drawing for more info

20910 363 180 62 22mm Dennis Trident Alx400 Heater Matrix

B7TK

20907 426 185 43 15mm volvo B7TK heater matix demister
B series B7R 1997 on 20564 459 155 44 22mm volov B7r heater matrix

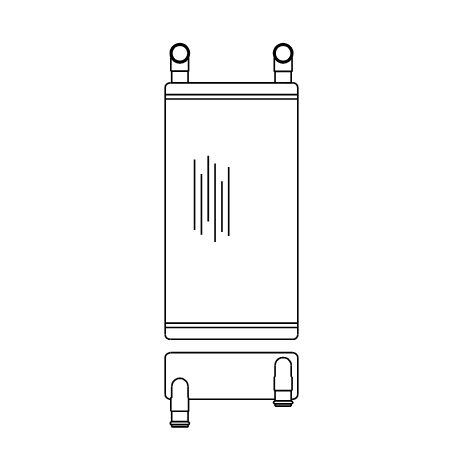

Volvo B9TL 20911 348 180 62 22mm Alexander dennis E400 heater matrix

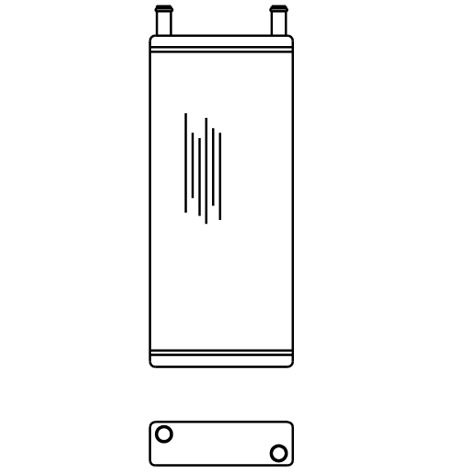

Bus 20534 450 194 59 3/4"

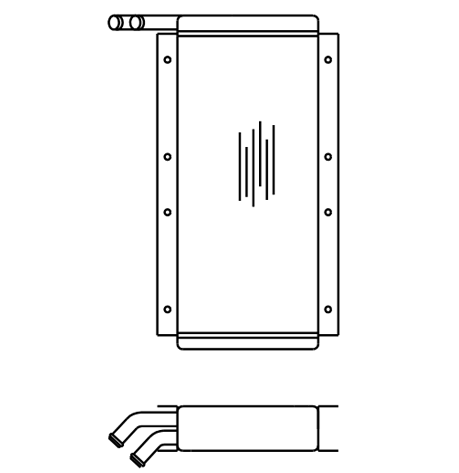

Coach Demister 20442 457 194 59 3/4"

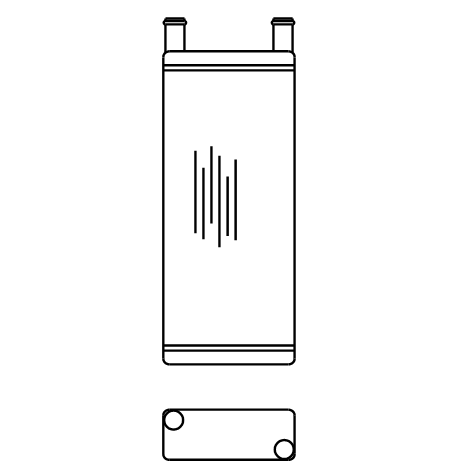

Heater Demister 20559 362 152 58 22mm

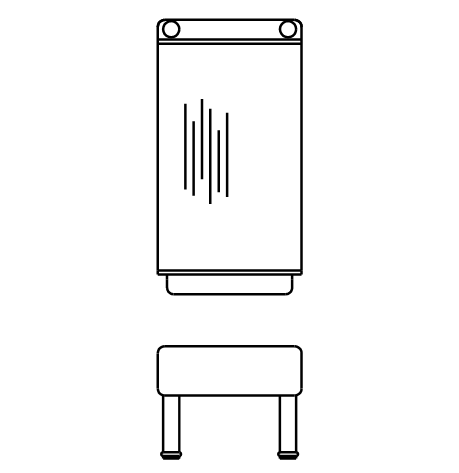

Coach Underfloor 20550 305 157 48 5/8"

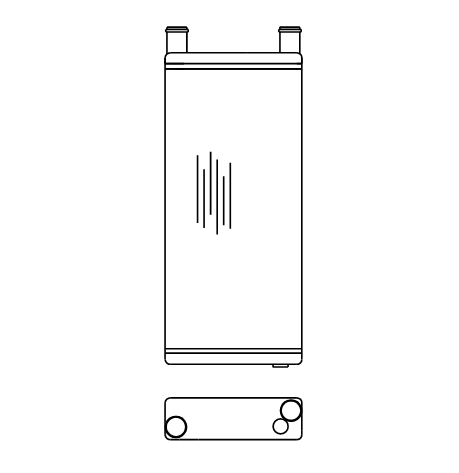

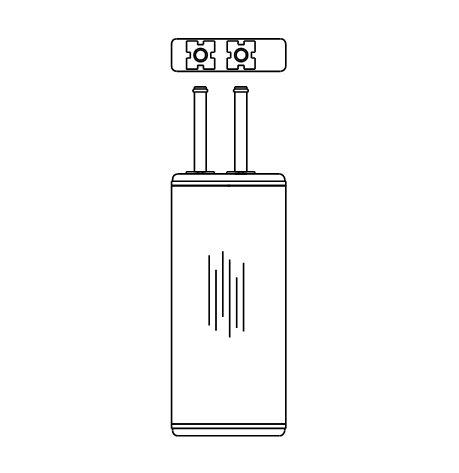

Excavator 20713 355 155 44 5/8" Volvo excavator heater matrix
Excavator 20834 360 160 33 5/8"

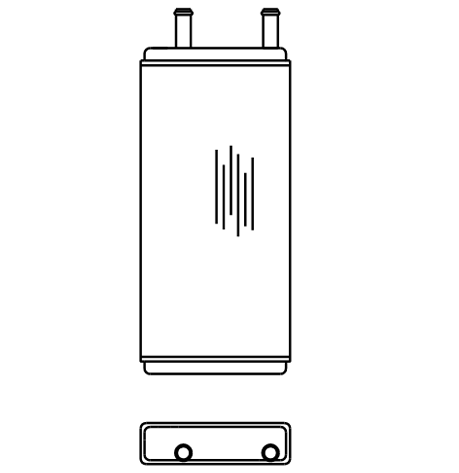

F10 20264 419 192 53 3/4"
F7 20264 419 192 53 3/4"

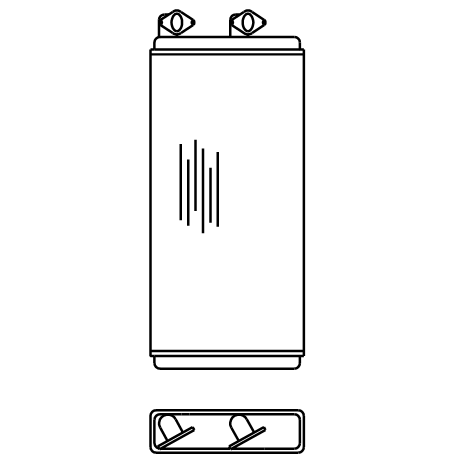

FL6 20496 415 192 53 flange
Loader / Dump Truck 20879 425 230 36 5/8" volvo loader dump truck heater matrix

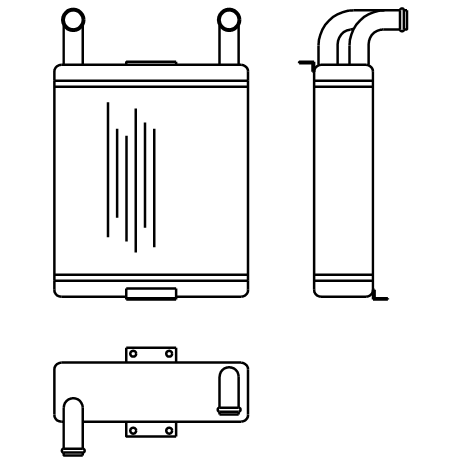

Olympian 20536 232 194 59 3/4"

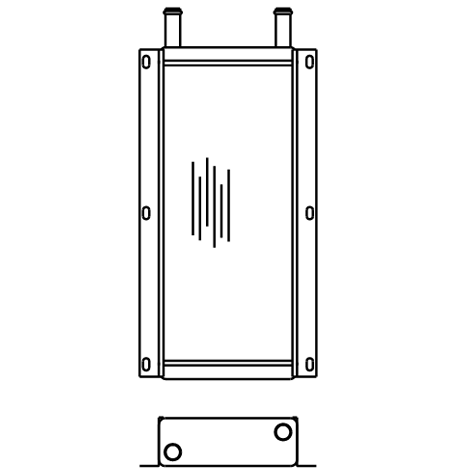

Olympian Saloon 20563 430 180 62 3/4"

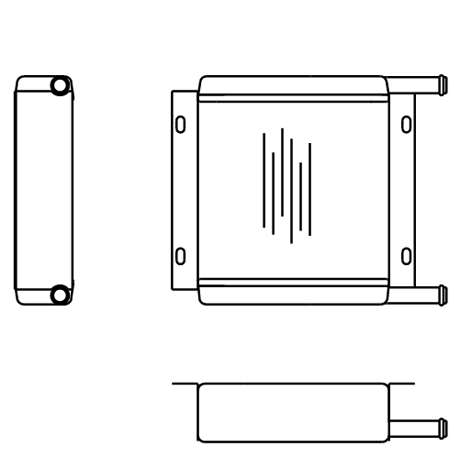

Olympian cab 20562 230 194 59 5/8"
Oympian Cab 20262 230 194 59 5/8"
