Contents Heater Matrix - Volvo Contents
Application Htr No. Height Width  Depth Pipe dia Image

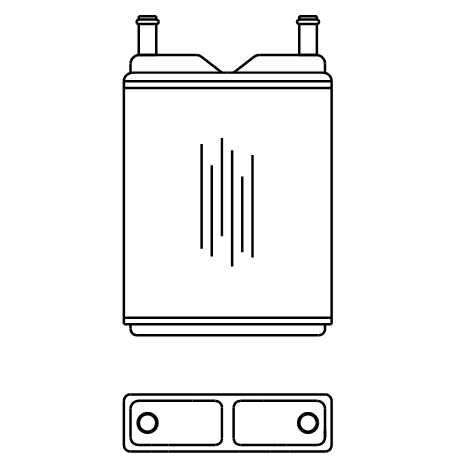

240 1974- 20274 255 189 52 5/8"
260 1974- 20274 255 189 52 5/8"

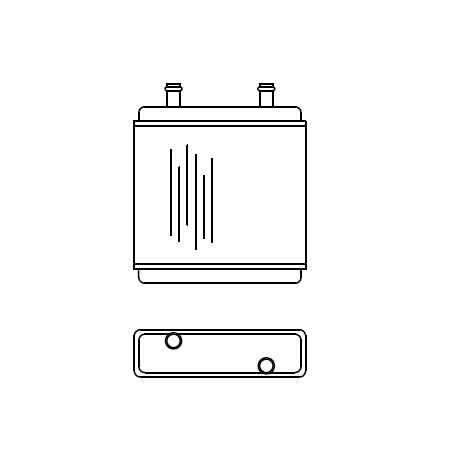

340 1976-91 20483 198 185 43 15mm
360 1983-91 20483 198 185 43 15mm

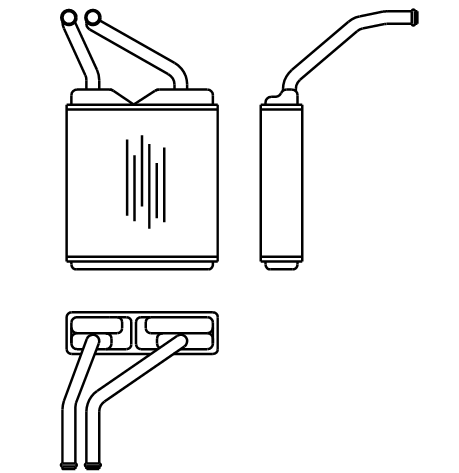

440 1988-96 20527 225 189 52 5/8"
460 1988-96 20527 225 189 52 5/8"
480 1988-96 20527 225 189 52 5/8"

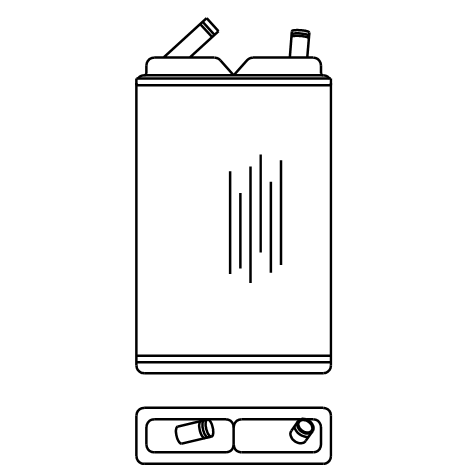

740 1982- 20608 289 178 49 5/8"

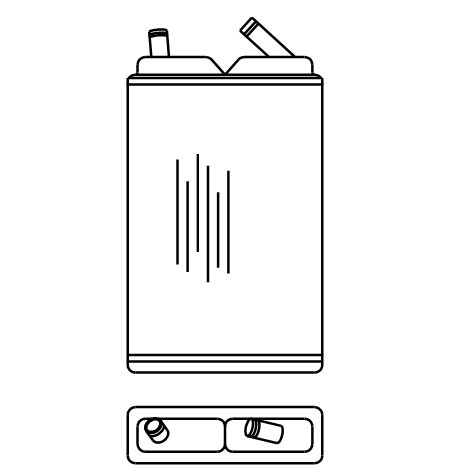

740 1982- Lhd 20586 289 178 49 5/8"

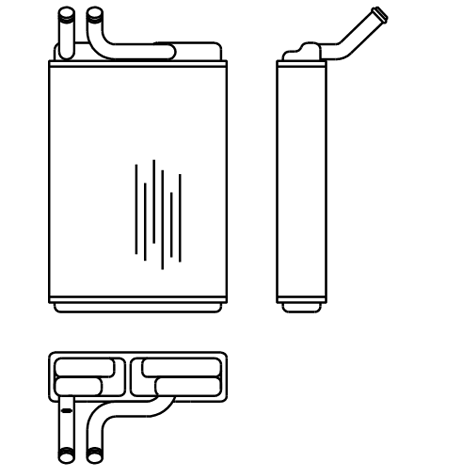

740 82-90 lhd 20756 286 188 50 5/8"
760 1982- 20608 289 178 49 5/8"
760 1982- Lhd 20586 289 178 49 5/8"
760 82-90 lhd 20756 286 188 50 5/8"

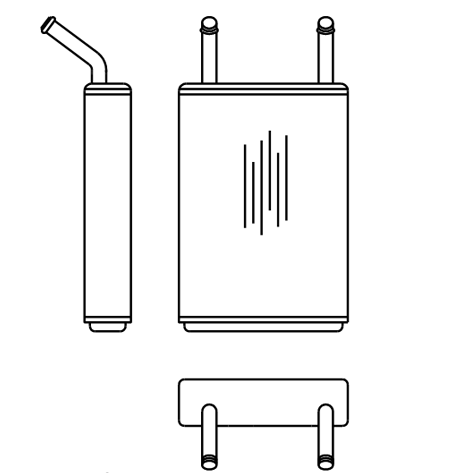

940 +ac 1992- 20528 277 189 52 5/8"
940 1982- 20608 289 178 49 5/8"
940 1982- Lhd 20586 289 178 49 5/8"

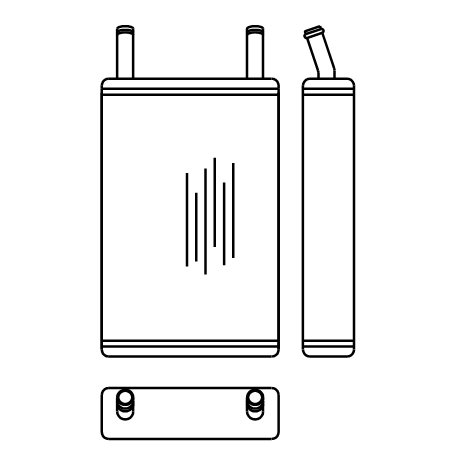

940 no Air Con 1990- 20711 274 178 49 5/8"
960 1982- 20608 289 178 49 5/8"
960 1982- Lhd 20586 289 178 49 5/8"
960 1992- 20528 277 189 52 5/8"

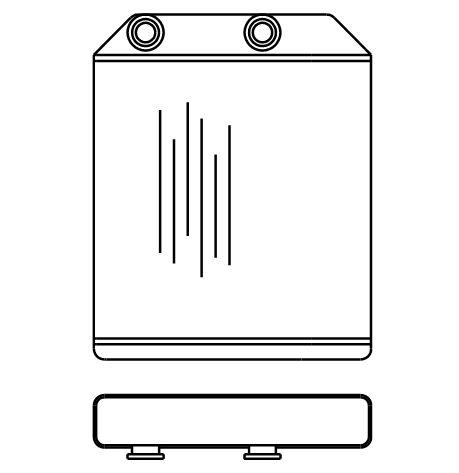

S40 20744 230 185 40 flange

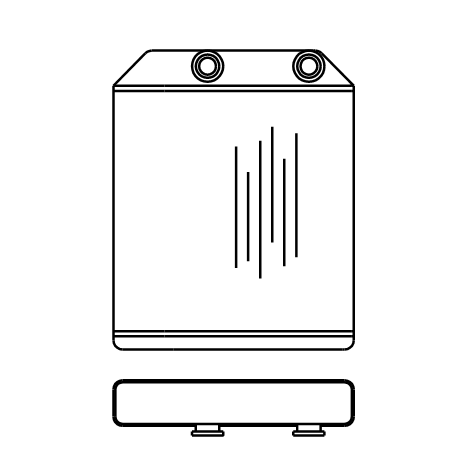

S40 Lhd 20801 230 185 25 flange
S90 Lhd 20756 286 188 50 5/8"
V40 20744 230 185 40 flange
V40 Lhd 20801 230 185 25 flange
V90 Lhd 20756 286 188 50 5/8"
