Contents Heater Matrix - Mercedes Contents
Application Htr No. Height Width  Depth Pipe dia Image

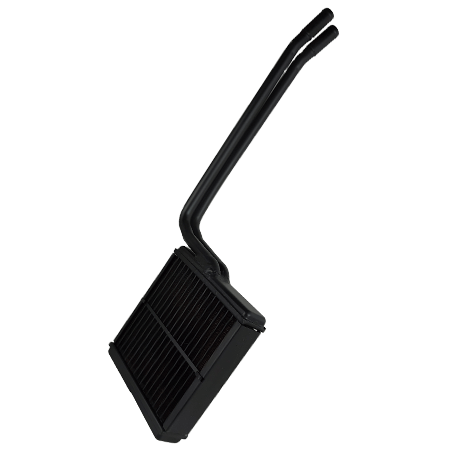

A Class W168 1997-04 21141 205

180



 45 18mm Heater Matrix - Mercedes - A Class W168 1997-04 - 21141

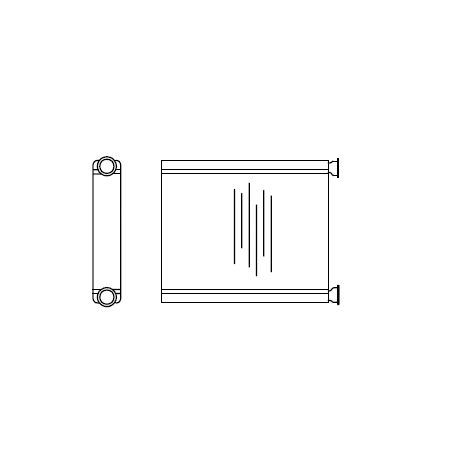

A Class (W176) 2013-18 21144 180 205 32 Flange Heater Matrix - Mercedes - A Class W176 2013-18 - 21144
B Class (W242 W246) 1012-18 21144 180 205 32 Flange Heater Matrix - Mercedes - B Class W242 W246 2012-18 - 21144

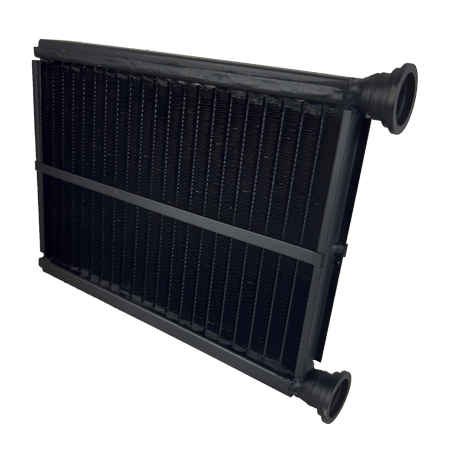

C Class / Series W205 S205 C205 2013 onwards

click picture for more info

 21087 158 255 28 flange Heater Matrix - Mercedes - C Class W205 S205 C205 2013 onwards - 21087
CLA (C117) 2013-18 21144 180 205 32 Flange Heater Matrix - Mercedes - CLA (C117) 2013-18 - 21144

E Class / Series W213 S213 A238 S238 2016 onwards

Click picture for more info

 21087 158 255 28 flange Heater Matrix - Mercedes - C Class W205 S205 C205 2013 onwards - 21087
GLA (X156) 2014 onwards 21144 180 205 32 Flange Heater Matrix - Mercedes - GLA (X156) 2014 onwards - 21144
G Class / G Series X253 C253 W463 21087 158 255 28 flange Heater Matrix - Mercedes - C Class W205 S205 C205 2013 onwards - 21087

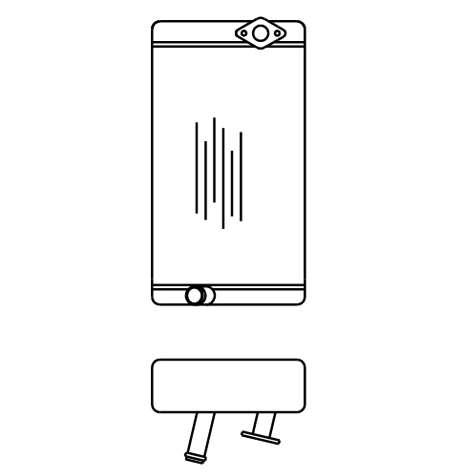

608D 20380 297 157 48 18mm & flange

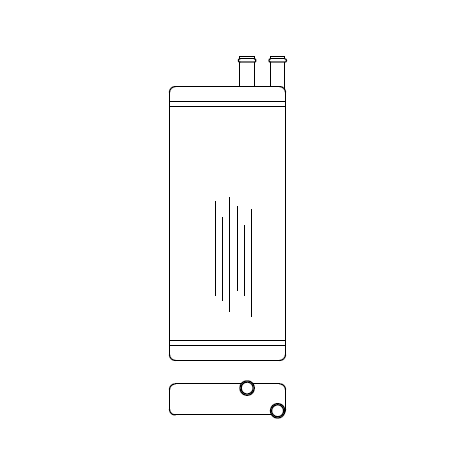

Vario 2001 onwards Minibus/Minicoach

click on picture for more info

 21081 345 149 40 15mm Heater Matrix - Mercedes - Vario 1991 onwards- 21081

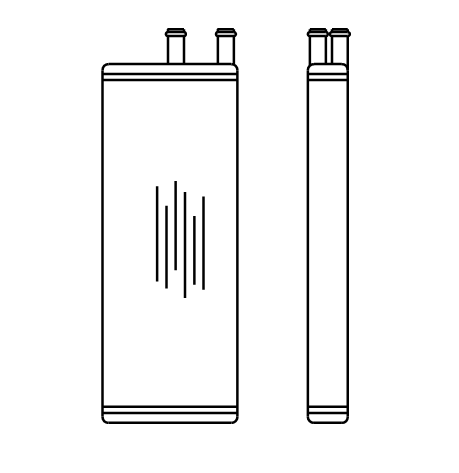

Bus 20819 369 135 40 5/8"

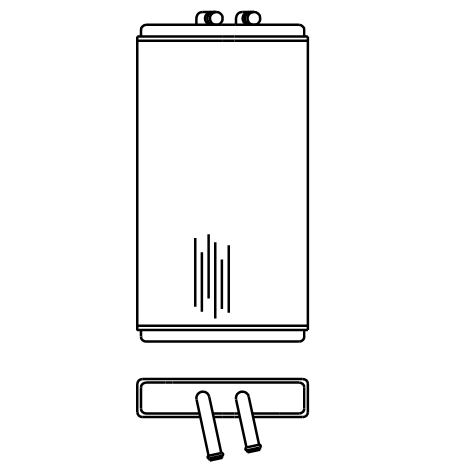

NG90 SK 1735 20501 440 239 53 18mm
