| Contents | Heater Matrix - Volkswagen | Contents |
| Application | Htr No. | Height | Width | Depth | Pipe dia | Image |
| Caddy 1985-95 | 20408 | 265 | 157 | 48 | 5/8" |  |

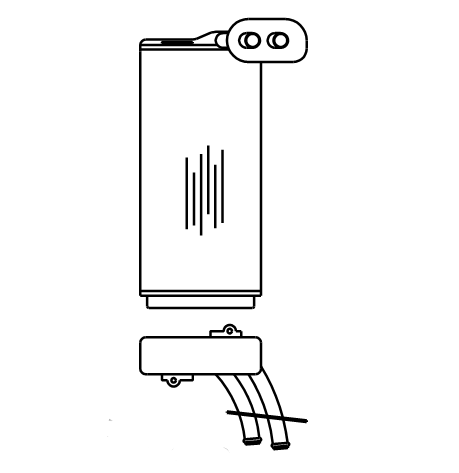

| Caddy 1995- | 20337 | 277 | 157 | 49 | 3/4" |  |
| Corrado 1988- | 20337 | 277 | 157 | 49 | 3/4" | |
| Dasher 1976-84 | 20408 | 265 | 157 | 48 | 5/8" | |
| Derby -1983 | 20357 | 258 | 139 | 50 | 5/8" & flange |  |
| Golf 1974-83 | 20408 | 265 | 157 | 48 | 5/8" | |
| Golf 2 1983-91 | 20337 | 277 | 157 | 49 | 3/4" | |
| Golf 3 91- | 20337 | 277 | 157 | 49 | 3/4" | |
| 21082 | 195 | 185 | 30 | flange |  |
|
| 21084 | 190 | 190 | 32 | flange |  |
|
| 21082 | 195 | 185 | 30 | flange | |
|
| 21084 | 190 | 190 | 32 | flange | |
|
| Jetta 1974-83 | 20408 | 265 | 157 | 48 | 5/8" | |
| LT van | 20372 | 347 | 197 | 50 | 18mm |  |
| Passat 1988-96 | 20337 | 277 | 157 | 49 | 3/4" | |
| Passat Mk1 & Mk2 1980-88 | 20408 | 265 | 157 | 48 | 5/8" | |
Passat B8 (3G2 3G5) Valeo version click on the picture for more info |
21082 | 195 | 185 | 30 | flange | |
Passat B8 (3G2 3G5) Denso version click on the picture for more info |
21084 | 190 | 190 | 32 | flange | |
| Polo -1983 | 20357 | 258 | 139 | 50 | 5/8" & flange | |
| Santana 1982-85 | 20408 | 265 | 157 | 48 | 5/8" | |
| scirrocco 1888 | 20337 | 277 | 157 | 49 | 3/4" | |
| Scirrocco Mk1 & Mk2 1974-83 | 20408 | 265 | 157 | 48 | 5/8" | |
| Sharan Mk1 & Mk2 (front) | 20896 | 300 | 155 | 43 | 3/4" |  |
| Sharan Mk1 & Mk2 (rear) | 20919 | 177 | 165 | 50 | 3/4" |  |
Tiguan Mk2 2016 onwards (Valeo) Click on the picture for more info |
21082 | 195 | 185 | 30 | flange | |
| 21084 | 190 | 190 | 32 | flange | |
|
|
click on drawing for more info |
21055 | 275 | 200 | 42 | Flange |  |
| 21084 | 190 | 190 | 32 | flange | |
|
|
click on picture for more info |
21082 | 195 | 185 | 30 | flange | |

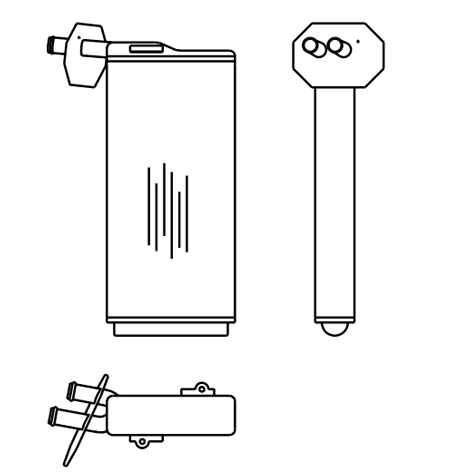

| Transporter 1991-2003 Lhd | 20585 | 360 | 157 | 48 | 3/4" |  |

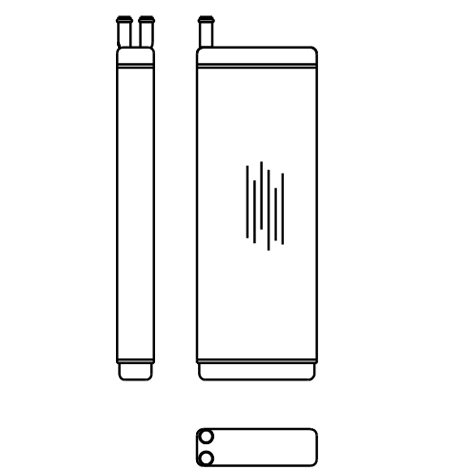

| Transporter 1980-91 | 20587 | 435 | 157 | 48 | 5/8" |  |

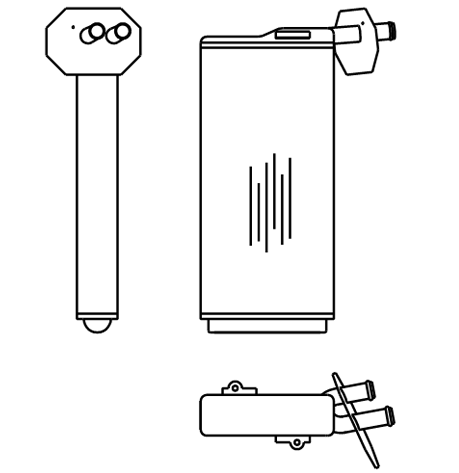

| Transporter 1991-2003 Rhd | 20685 | 360 | 157 | 48 | 3/4" |  |

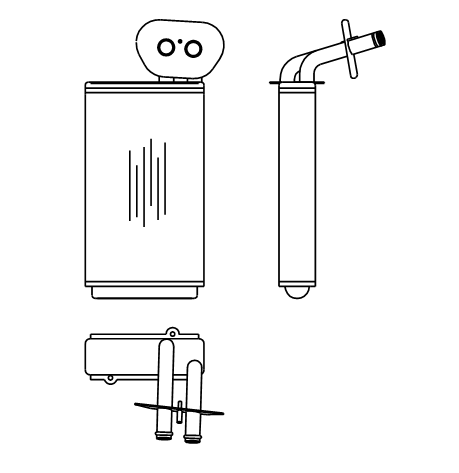

| 20998 | 270 | 155 | 47 | 3/4" |  |
|
|
Click on the drawing for more info |
21055 | 275 | 200 | 42 | Flange | |
| Vento 1992- | 20337 | 277 | 157 | 49 | 3/4" | |
